- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- Middle Atlantic
- Product Series
- DWR
- Marketing Information

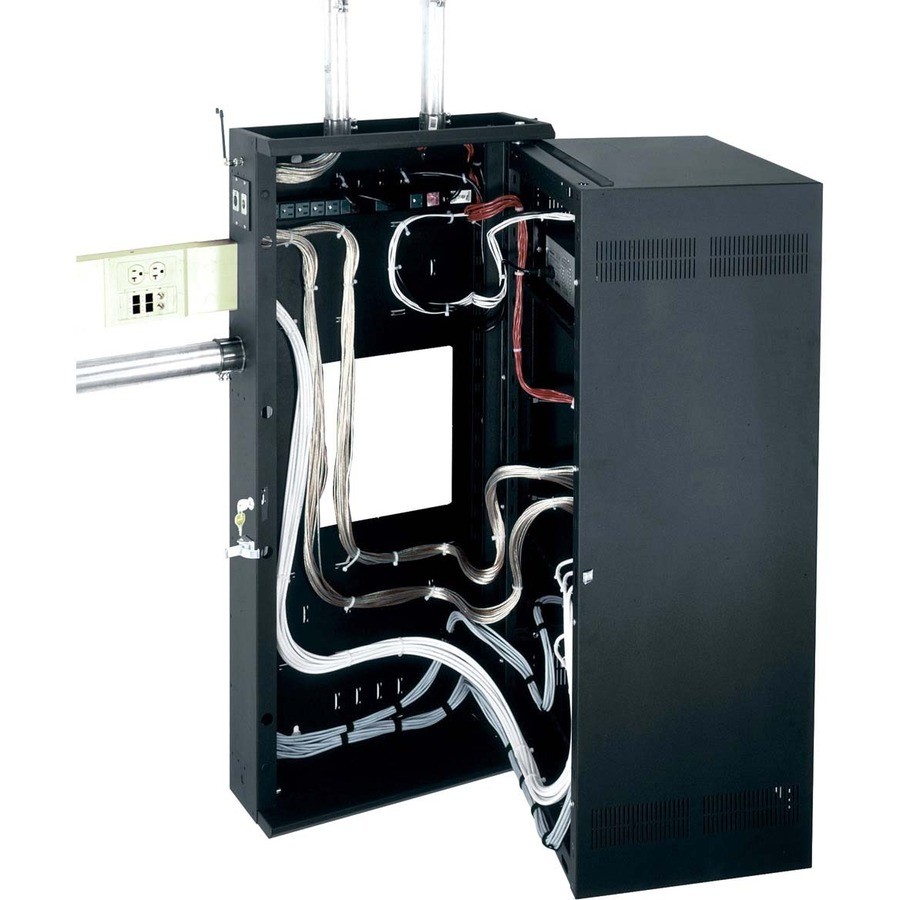

The DWR Series Wall Racks are now Forward and Lever Lock compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster! 18RU and 26in Deep. Now equipped with the revolutionary Forward rack rail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rack rail is optional (FWD-DWR-RRxx). Now accepts patented Lever Lock tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP). Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch. Center section rear channel accommodates optional PDT and PD Slim PDUs to save space. Tool-Free Quick-Mount system for easy, one-person mounting of the center section to the backpan on the jobsite. Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room. Center section swing is reversible, and can be both key-locked and padlocked. Center section is keyed differently from optional front door for additional security. Designed for active or passive cooling to support all systems. Comes with a factory installed plexi door.
- Product Type
- Rack Cabinet
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Rack Type
- Enclosed Cabinet
- Ventilation
- Yes
- Features
- Cable Management
- Lockable
- Key Lock
- Powder Coated
- Physical Characteristics
- Form Factor
- Wall Mountable
- Color Family
- Black
- Product Color
- Black
- Product Material
- Steel
- Maximum Weight Capacity
- 250 lb
- Height
- 38.5"
- Width
- 23.4"
- Depth
- 26"
- Weight (Approximate)
- 83.99 lb
- Rack Depth
- 24"
- Miscellaneous
- Additional Information
- UL Listed
- Welded construction
- Abundant Hook and Loop Fastener and internal cable tie points
- 2"" knockouts, 4"" knockouts for Wiremold 4000 Series raceways, and knockouts for UCP series universal connector panels on side
- Country of Origin
- United States
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
