• General Information
• • Manufacturer
  • Kramer Electronics LTD
  • Manufacturer Website Address
  • http://www.kramerelectronics.com
  • Brand Name
  • Kramer
  • Product Type
  • Audio/Video Switchbox

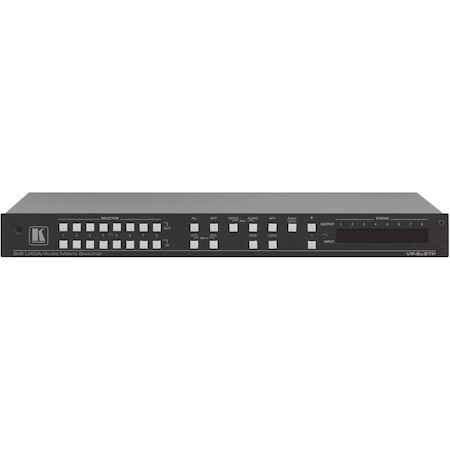

The VP-8x8TP is a high-performance matrix switcher for computer graphics video and stereo audio signals. The unit routes any or all inputs to any or all twisted pair outputs. A compatible twisted pair receiver converts each output signal back to the original input formats.

• High Resolution - Up to UXGA/1080p.
• HDTV Compatible.
• Active Input Indication™ Reporting - Each input button on the front panel automatically lights when the unit detects a video signal on that input. When an input is selected for switching, the button changes to a different color to indicate it is the active input.
• Delayed Switching™ - Up to a 3.5s (user selectable) delay for clean switching.
• Kr-isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp® advanced sync processing can be enabled or disabled.
• Power Connect™ Feature - A single connection to the transmitter (only) powers both units when the devices are within 150ft (50m) of each other.
• Configurable EDID - For each input, via RS-232.
• Take Button - Executes multiple switches all at once.
• Memory Locations - Stores multiple switches as presets to be recalled and executed when needed.
• Audio Breakaway Switching.
• System Range - Over 100m (330ft) transmission range between the switcher and the TP receiver.
• Audio Level Controls - For adjusting the signal level of each input.
• Front Panel Lockout.
• Flexible Control Options - Front panel, RS-232 and RS-485 (using Kramer Protocols 2000 and 3000), IR remote and optional extension cable, Ethernet with built in Web server.
• Worldwide Power Supply - 100-240V AC.
• Standard 19" Rack Mount Size - 1U. Rack "ears" included.

• Warranty
• • Limited Warranty
  • 7 Year
