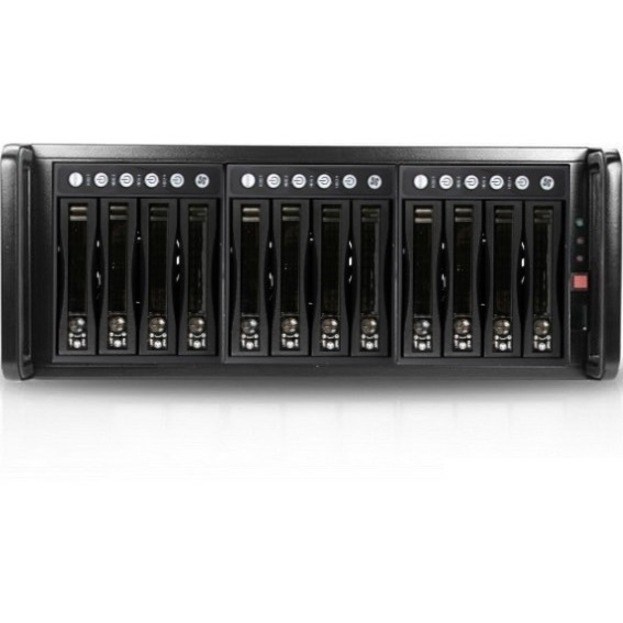

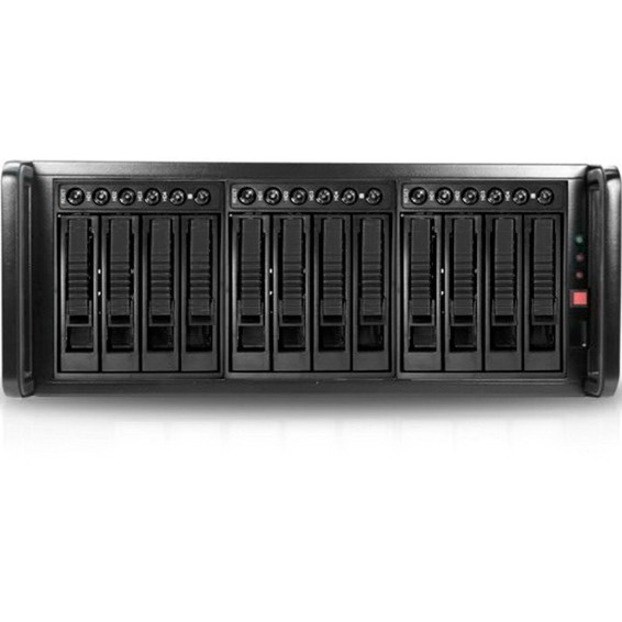

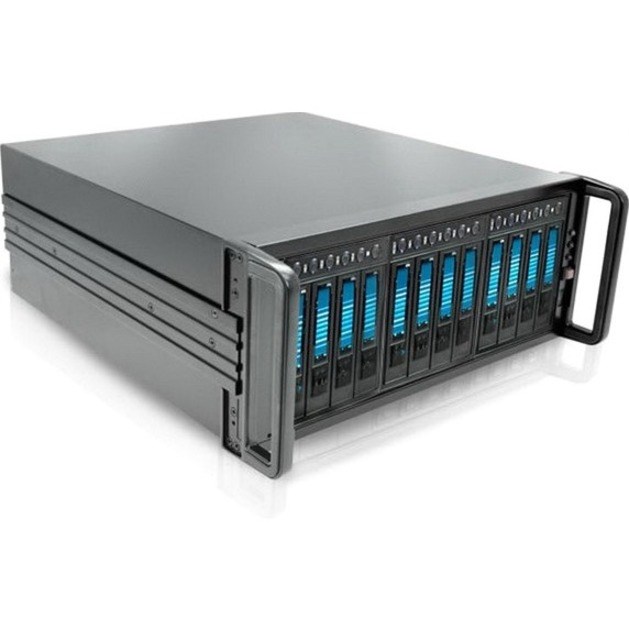

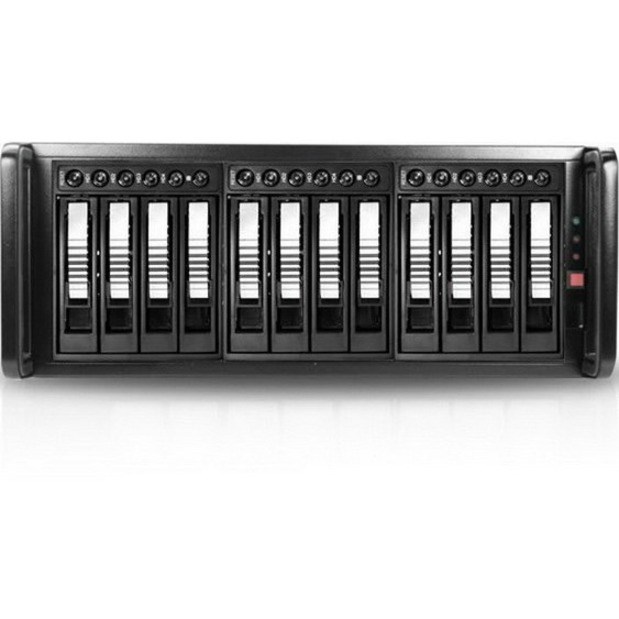

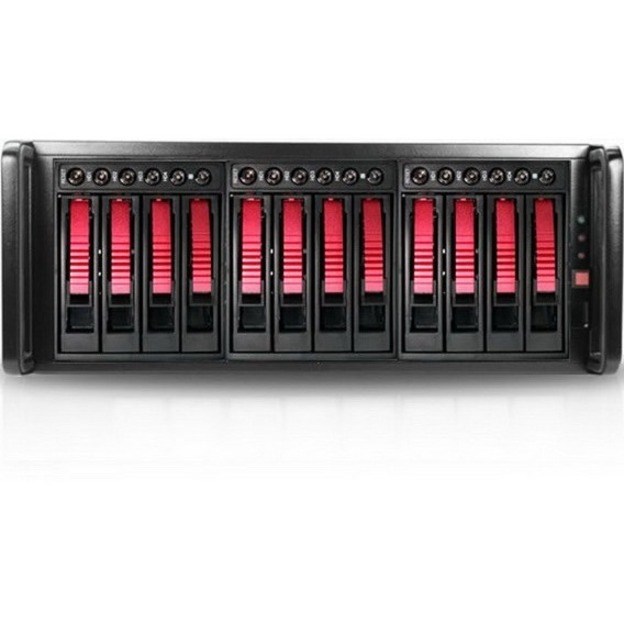

JAGE412MS is an external 4U-12 bay hot-swappable SAS/SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 12 hard drives for RAID configurations. This 4U-12 Bay external SATA JBOD is designed with 3 high quality HD miniSAS (SFF8644) connectors. One 120mm Ball bearing fan offer long lasting and enhanced thermal cooling solution. DAGE412U-3HD provides maximum storage and performance to high density storage system.
- General Information
- Manufacturer
- iStarUSA, Inc
- Manufacturer Website Address
- http://www.istarusa.com
- Brand Name
- RAIDage
- Product Type
- Drive Enclosure
- Technical Information
- Number of Hard Drives Supported
- 12
- Number of Hard Drives Installed
- 0
- Controllers
- Non-RAID Mode
- JBOD
- I/O Expansions
- Number of Total Expansion Bays
- 12
- Number of 2.5"/3.5" Bays
- 12
- Hot Swappable Bays
- Yes
- Network & Communication
- Wireless LAN
- No
- Interfaces/Ports
- Drive Interface
- 12Gb/s SAS
- SATA/600
- Host Interface
- Mini-SAS HD
- Physical Characteristics
- Product Color
- Black
- Product Material
- SECC
- Cooling Fan
- Yes
- Form Factor
- Rack-mountable
- Rack Height
- 4U
- Height
- 7"
- Width
- 19"
- Depth
- 20"
- Miscellaneous
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
