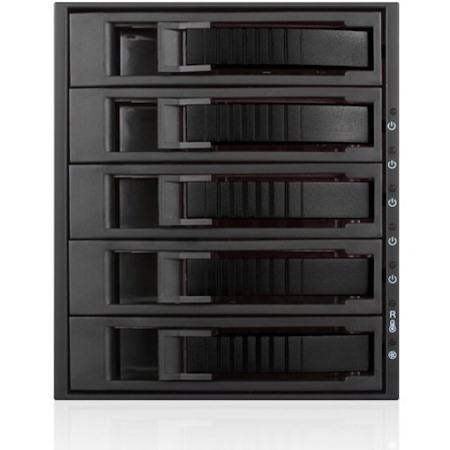

3x 5.25" to 5x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack
- Stylish aluminum color handle and heat-sink body
- Support Hot-Swap & RAID Configuration (need an additional RAID controller)
- Aluminum Design with Conductive Dissipation Grooves
- Power, fan and high temperature LED indicators
- High Performance Transfer Rate up to 12Gb/s
- Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD/SSD
- Equipped with Fan Speed Control Switch
- 14TB Hard Drives Compatible
Product Introduction
High level RAID and high availability storage in compact design, BPU-350HD series adds extra storage and hot-swap capability to satisfy any application needs. The BPU-350HD is constructed of aluminum material that provides best heat dissipation required for high performance SAS/SATA drives. It is designed with excellent front to back vent airflow. The BPU-350HD is an ideal solution for internal server RAID and JBOD applications. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.
- General Information
- Manufacturer
- iStarUSA, Inc
- Manufacturer Website Address
- http://www.istarusa.com
- Brand Name
- iStarUSA
- Product Series
- BPU
- Product Type
- Drive Enclosure
- Technical Information
- Number of Hard Drives Supported
- 5
- Number of Hard Drives Installed
- No
- Number of Solid State Drive Supported
- 5
- Number of Solid State Drive Installed
- No
- I/O Expansions
- Number of Total Expansion Bays
- 5
- Number of 2.5"/3.5" Bays
- 5
- Hot Swappable Bays
- Yes
- Network & Communication
- Wireless LAN
- No
- Interfaces/Ports
- Host Interface
- Serial ATA/600
- Physical Characteristics
- Product Color
- Black
- Product Material
- Aluminum
- Cooling Fan
- Yes
- Form Factor
- Internal
- Compatible Drive Bay Width
- 5.25"
- Height
- 5"
- Width
- 5.8"
- Depth
- 8.3"
- Weight (Approximate)
- 4 lb
- Miscellaneous
- Package Contents
- BPU-350HD 3x 5.25" to 5x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack
- 5 x SATA Cables
- Screws
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
