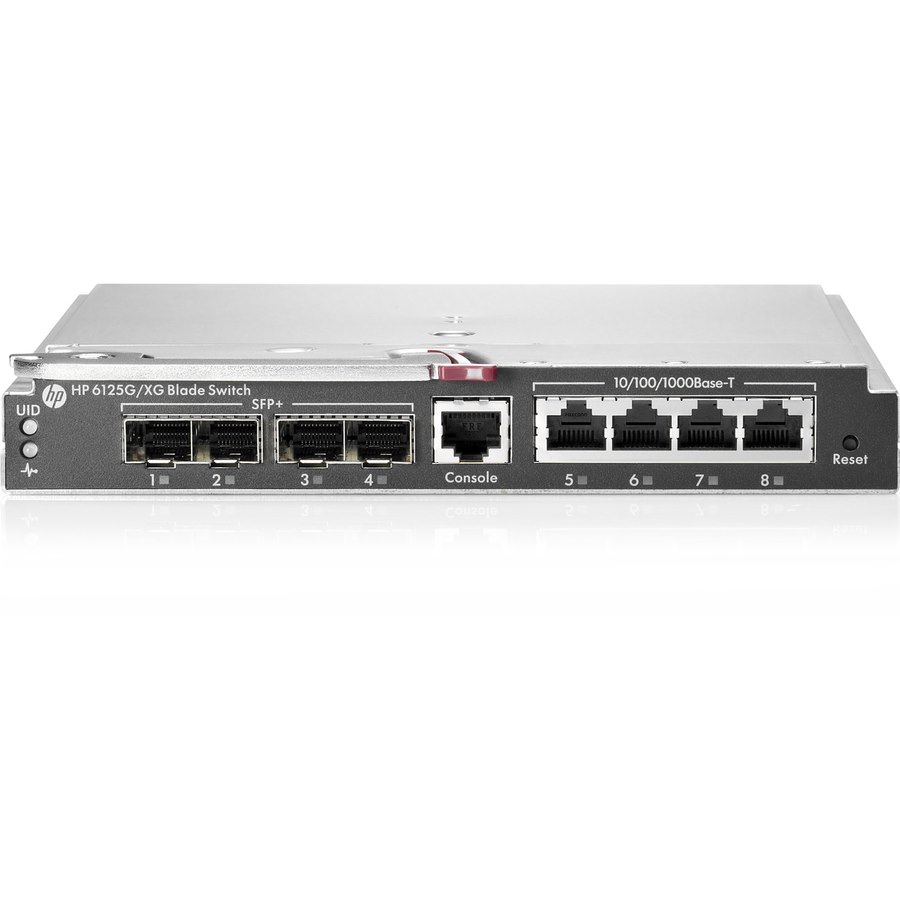

The HP 6125G/XG Ethernet Blade Switch brings the resiliency of Intelligent Resilient Networking (IRF) and the reliability of the Comware operating system to the c-Class BladeSystem. With sixteen 1Gb downlinks, and a combination of 1Gb and 10Gb uplinks, the HP 6125G/XG brings down costs while increasing datacenter efficiency and capability. Switches can be combined at the enclosure, rack or datacenter level into a single virtual switch, managed through a single IP address. Comware OS provides a common level of features, service and security levels from edge to core. All network elements can be managed through Intelligent Management Center (IMC), providing comprehensive single pane provisioning of the entire network. This truly versatile switch delivers excellent investment protection and supports IPv6, full layer 3 routing, and distributed trunking.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Type
- Expansion Module
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Total Number of Network Ports
- 4
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x 10/100/1000Base-T Network Port
- 4 x Gigabit SFP / 10 Gigabit SFP+ Expansion Ports
- 1 x RJ-45 Management Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Fast Ethernet
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Expansion Slot Type
- SFP
- SFP+
- Number of SFP Slots
- 4
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1D
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.3ad
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.3ae
- IEEE 802.1s
- IEEE 802.1v
- IEEE 802.1ag
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- Power Consumption
- 41 W
- Physical Characteristics
- Height
- 1.1"
- Width
- 7.5"
- Length
- 10.5"
- Weight (Approximate)
- 2.91 lb
- Miscellaneous
- Application/Usage
- Data Center
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
