- General Information
- Manufacturer
- HP Inc.
- Manufacturer Website Address
- http://www.hp.com
- Brand Name
- HP
- Product Series
- Z6 G5
- Product Type
- Workstation

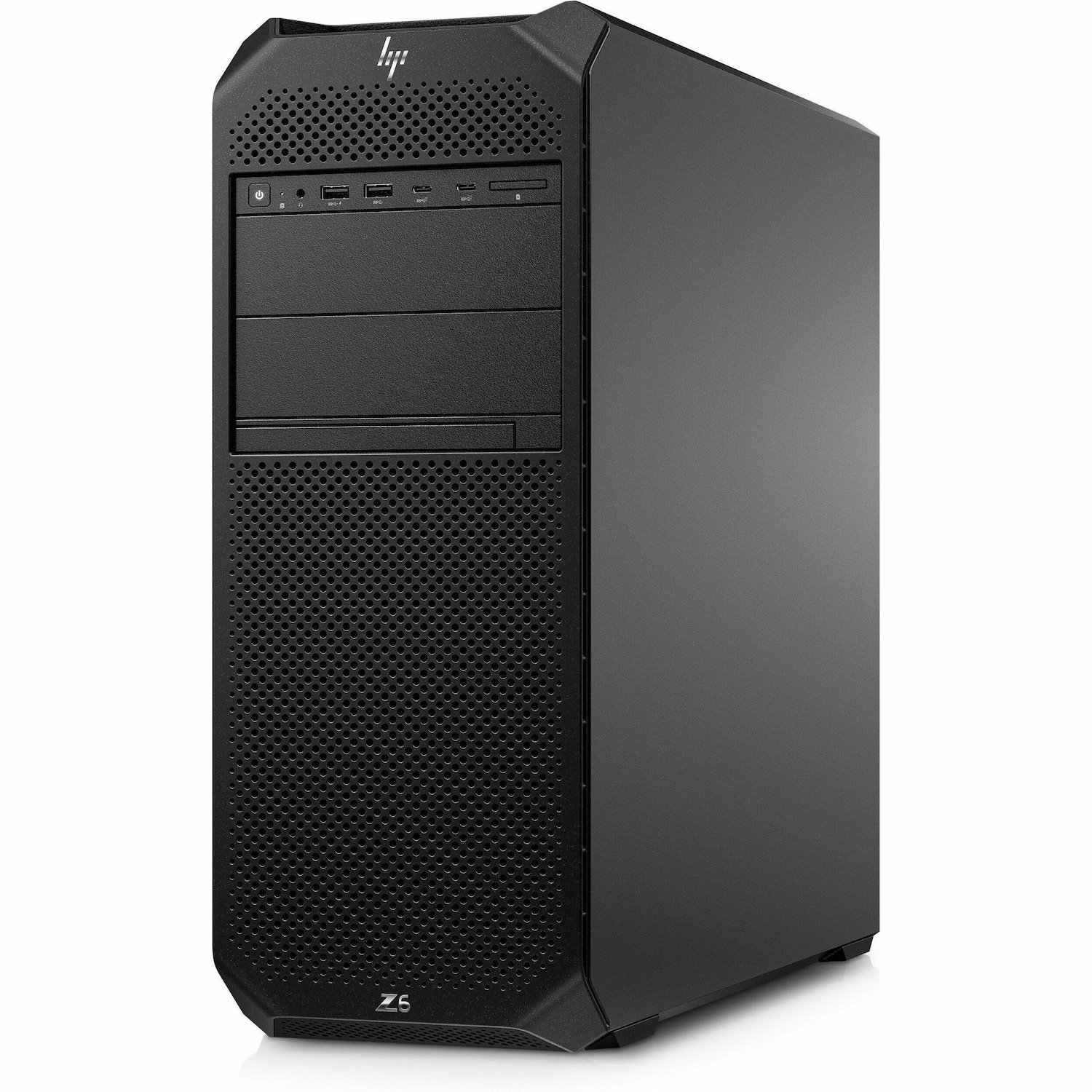

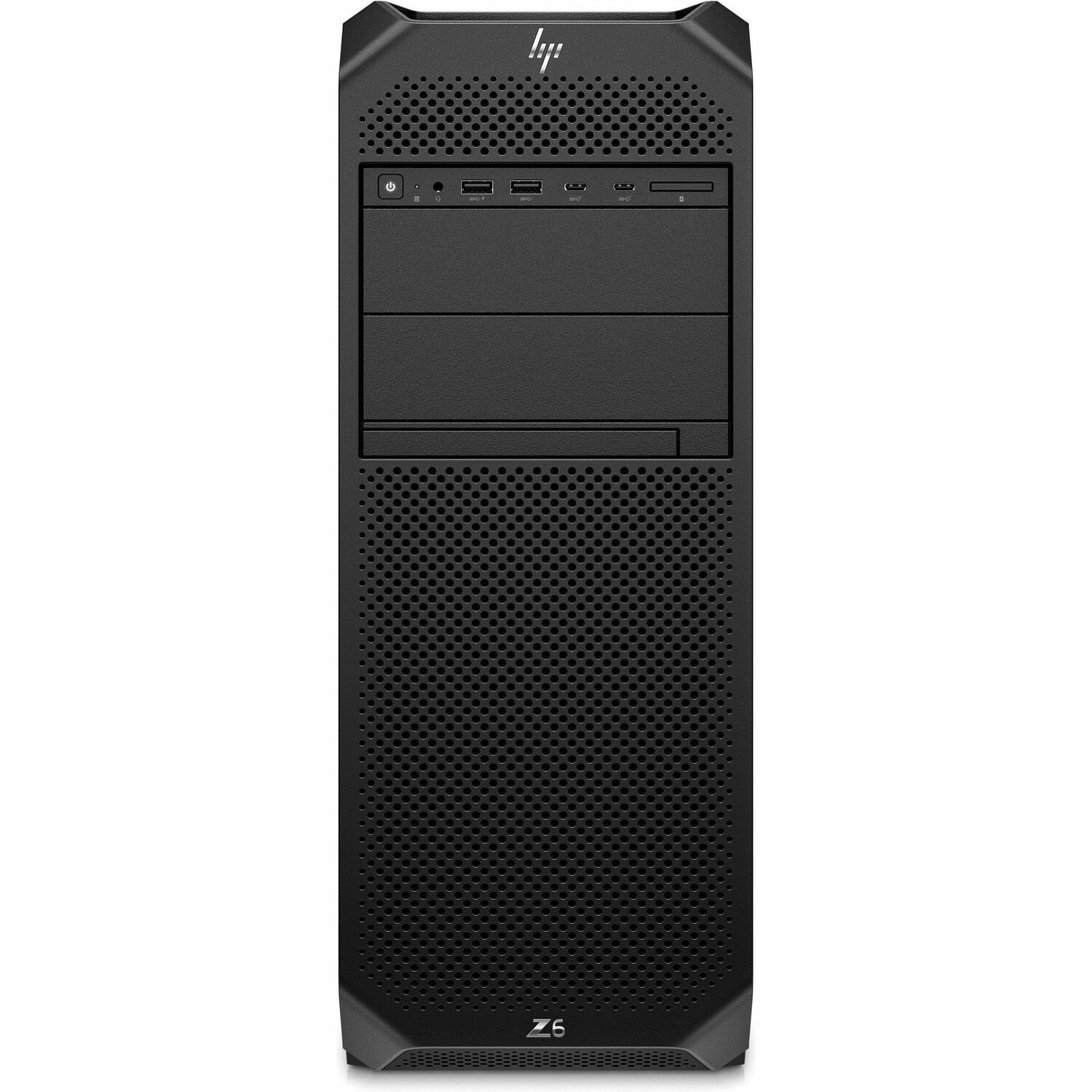

HP Z6 G5 Workstation Desktop PC | Unleash Extreme Graphics Performance
Accelerate graphics-intensive projects-from machine learning and simulation to advanced visual effects. The Z6 now fits up to 3x more GPUs than the previous gen and has plenty of room to expand.
- Processor
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Manufacturer
- Intel
- Processor Type
- Xeon
- Processor Model
- w5-3435X
- Processor Core
- Hexadeca-core (16 Core)
- Processor Threads
- 32
- Processor Speed
- 3.10 GHz
- Processor Socket
- Socket LGA-4677
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- W790
- Memory
- Standard Memory
- 256 GB
- Maximum Memory Supported
- 1 TB
- Memory Technology
- DDR5 SDRAM
- Total Number of Memory Slots
- 8
- Error Checking
- ECC
- Signal Processing
- Registered
- Controllers
- Controller Type
- Serial ATA/600
- NVMe
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5, 10
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 14
- Number of Onboard USB 2.0 Ports
- 3
- Number of USB 3.2 Gen 1 Ports
- 2
- Number Of Ethernet Ports
- 1
- Optional Ports
Details regarding optional ports aggregated from the information available for this product's family/series.
- 2 10GbE LAN ports (optional)
- External Antenna (optional)
Flex I/O Module
- (Serial Port v3, Dual USB-A 3.2 Gen1, USB-C 3.2 Gen2, 10GbE single port, 2.5GbE LAN single port, 1 GbE single port, 1GbE Fiber single port LC, WiFi6 + BT5.2 WLAN w/ INTAnt)
Front I/O Premium :
- 2 SuperSpeed USB Type-C™ 20 Gbps signaling rate (USB Power Delivery 3.0)
- 2 SuperSpeed USB Type-A 5 Gbps signaling rate [left-most Type-A port supports BC1.2 (Battery Charging)]
Front I/O Entry:
- 4 SuperSpeed USB Type-A 5 Gbps signaling rate [left-most Type-A ports supports BC1.2 (Battery Charging)]
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Cooler Type
- Air Cooler
- Form Factor
- Tower
- Height
- 17.5"
- Width
- 6.7"
- Depth
- 18.8"
- Weight (Approximate)
- 53.57 lb
- Miscellaneous
- Energy Star
- Yes
- TCO Certified
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
- Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
- Energy Efficiency Certification
- China Energy Conservation Program (CECP)
- Energy Efficiency Compliance
- Energy-related Products Directive (ErP)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
