- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL Professional
- Product Line
- Control
- Product Series
- 10
- Product Type
- Speaker

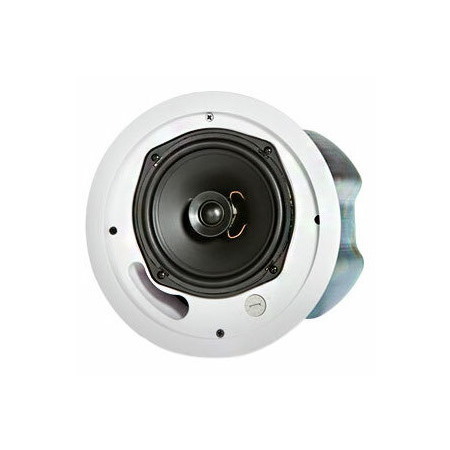

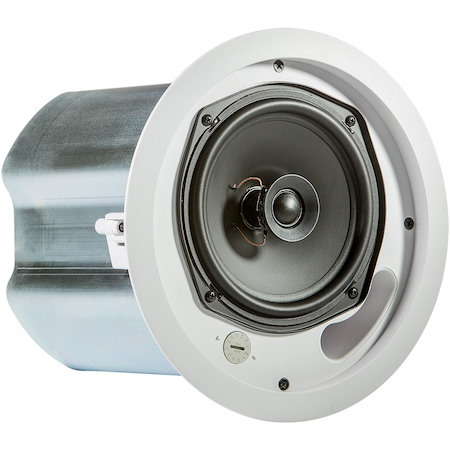

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 100 W
- PMPO Output Power
- 200 W
- Woofer Driver Size
- 6.50"
- Woofer Driver Material
- Polypropylene
- Tweeter Driver Size
- 0.75"
- Tweeter Driver Material
- Soft Dome
- Minimum Frequency Response
- 96 Hz
- Maximum Frequency Response
- 15 kHz
- Impedance
- 8 Ohm
- Sound Pressure Level
- 116 dB
- Sensitivity
- 91 dB
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Product Material
- Butyl Rubber
- Anodized Aluminum
- Acrylonitrile Butadiene Styrene (ABS)
- Zinc-plated Steel
- Kapton
- Woofer Material
- Polypropylene
- Form Factor
- Blind Mount
- Ceiling Mountable
- Depth
- 8.80"
- Diameter
- 10"
- Weight (Approximate)
- 7.50 lb
- Miscellaneous
- Package Contents
- Control 16C/T Two-Way 6.5" Coaxial Ceiling Loudspeaker
- C-ring Support Backing Plate
- 2 x Tile Support Rails
- Cutout Template
- Paint Shield
- Removable Locking Multi-Pin Connector
- Grille
- Certifications & Standards
- UL94-V0
- UL94-5VB
- UL1480
- UL2043
- NFPA90
- NFPA70
- S7232
- UL Listed
- UL1876
- C-tick N108
- CE
- IEC60849
- EN60849
- UL94-5HB
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- China
