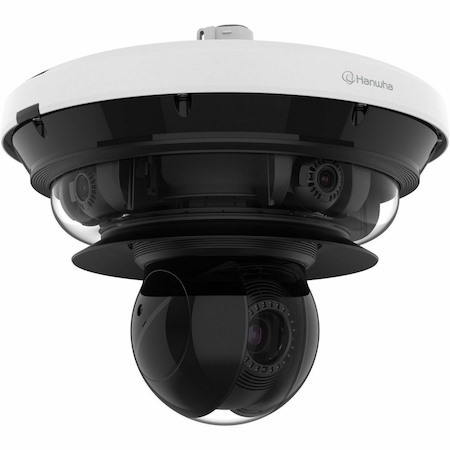

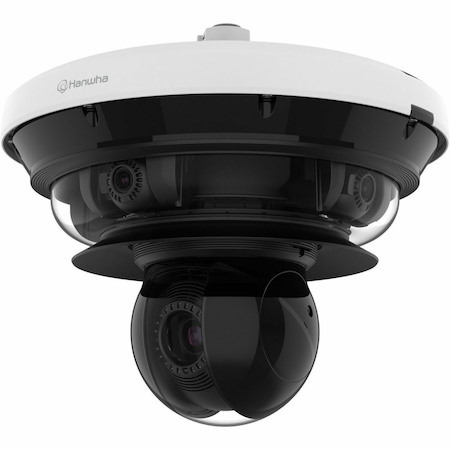

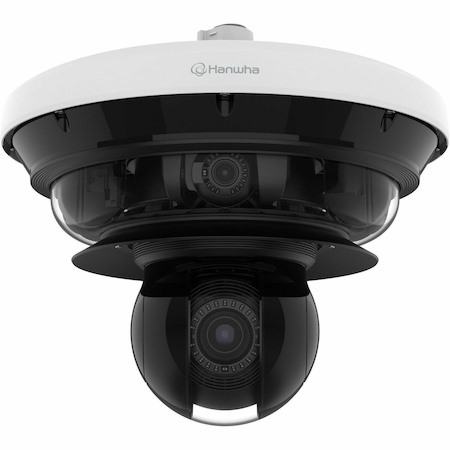

The PNM-C344004RQPZ is an innovative network vandal outdoor Multi-Directional camera that combines AI, IR, 4K lenses with PTRZ, and a 2MP 40x PTZ. This allows for full 360° coverage while being able to zoom in on events using SmartZoom, or manual operator control. Each of the quad-sensors can be remotely adjusted for installation to provide complete lifecycle adjustment of the pan, tilt, rotation, zoom, & focus.
- 120dB WDR
- 4.44~142.6mm (Optical 40x) lens
- PTZ Auto Tracking, SmartZoom to Preset / IVA Trigger
- 4-Channels @ 4K/8MP with motorized PTRZ for easy installation and remote adjustment of the entire FoV, 3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°)
- 15FPS AI ON, 20FPS AI OFF
- 2MP @ 60FPS PTZ with 40x zoom
- IR viewable [4CH] length 20m (65ft) / [PTZ] WiseIR 200m (656ft)
- H.265, H.264, MJPEG triple codec
- Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear
- WiseNR ? (using AI engine), WiseStream? (Based on AI engine)
- I/O Box compatibility
- TPM with FIPS 140-2 level 2
- micro SD card 512GB x2
- IP66, IK10, NEMA4X
- Operating Temperature: -40°C~+50°C(-40°F~+122°F)
- HPoE (injector included)
- Hard-coated dome bubble
- General Information
- Manufacturer
- Hanwha Group
- Manufacturer Website Address
- http://www.hanwha.com
- Brand Name
- Wisenet
- Product Series
- P
- Product Type
- Network Camera
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Recording Formats
- 4K
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 656.17 ft
- Night Vision Type
- Infrared
- Camera Iris
- Fixed
- Auto
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.8"
- Color Supported
- Color
- Tilt
- 9° to 65°
- Field of View
- H: 109°/ V: 55°
- Effective Camera Resolution
- 34 Megapixel
- Number of Sensors
- 4
- Video
- Video Formats
- H.264
- H.265
- MJPEG
- Maximum Video Resolution
- 3840 x 2160
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 3.30 mm
- Maximum Focal Length
- 5.70 mm
- Minimum Focal Length (Lens 2)
- 0.17"
- Maximum Focal Length (Lens 2)
- 6.69"
- Lens Included
- Yes
- Minimum Aperture
- f/1.9
- Maximum Aperture
- f/1.5
- Optical Zoom
- 1.7x
- Optical Zoom (Lens 2)
- 40x
- Exposure
- Shortest Shutter Speed
- 1/12000 Second
- Longest Shutter Speed
- 2 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Gigabit Ethernet
- Protocols
- IPv4
- IPv6
- TCP/IP
- UDP/IP
- RTP/UDP
- RTP/TCP
- RTSP
- RTCP
- NTP
- HTTP
- HTTPS
- SSL/TLS
- DHCP
- FTP
- SMTP
- ICMP
- IGMP
- SNMPv1/v2c/v3 (MIB2)
- ARP
- DNS
- DDNS
- QoS
- UPnP
- Bonjour
- LLDP
- SRTP
- MQTT
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 64 W
- Power Source Type
- HPoE
- Physical Characteristics
- Mount Type
- Hanging Mount
- Form Factor
- Dome
- Color Family
- White
- Product Color
- White
- Diameter
- 15"
- Weight (Approximate)
- 17.42 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Maximum Operating Humidity
- 95%
- Miscellaneous
- Features
- Day/Night
- Back Light Compensation (BLC)
- Wide Dynamic Range
- Digital Noise Reduction
- Motion Detection
- Gain Control
- White Balance
- AI Analytics
- Vehicle Detection
- Alarm Triggering
- Indoor/Outdoor
- Outdoor
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- Country of Origin
- Korea
