- General Information
- Manufacturer
- GeoVision, Inc
- Manufacturer Website Address
- http://www.geovision.com.tw
- Brand Name
- GeoVision
- Product Series
- GV-MFD1501
- Product Type
- Network Camera

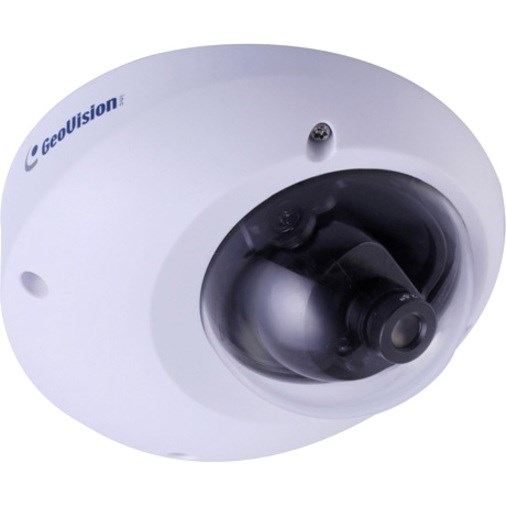

The GV-MFD1501 Series offers an indoor, fixed, mini-sized network camera with various lens options. The camera is equipped with a Super Low Lux CMOS image sensor with which the camera is capable of providing a color live view in near darkness. The camera's USB port which supports wireless connection through GV-WiFi Adapter (optional) or an external storage using a USB hard drive.
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/3"
- White Balance Modes
- Auto
- Manual
- Color Supported
- Color
- Monochrome
- Effective Camera Resolution
- 1.3 Megapixel
- Video
- Video Formats
- H.264
- MJPEG
- Maximum Video Resolution
- 1280 x 1024
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.10 mm
- Lens Included
- Yes
- Lens Mount Type
- M12-mount
- Maximum Aperture
- f/1.8
- Focus Modes
- Fixed Focus
- Exposure
- Shortest Shutter Speed
- 1/8000 Second
- Longest Shutter Speed
- 1/5 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Protocols
- DHCP
- DynDNS
- FTP
- HTTP
- HTTPS
- NTP
- ONVIF
- PSIA
- QoS
- RTSP
- SNMP
- SMTP
- TCP
- UDP
- UPnP
- 3GPP
- ISMA
- DSCP
- Controls/Indicators
- Status Indicators
- 4 LEDs:
- Link
- ACT
- Power
- Status
- Interfaces/Ports
- USB
- Yes
- Network (RJ-45)
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Power Description
- Maximum Power Consumption
- 6 W
- Physical Characteristics
- Mount Type
- Ceiling Mount
- Wall Mount
- Form Factor
- Dome
- Height
- 2.1"
- Diameter
- 4.2"
- Weight (Approximate)
- 9.88 oz
- Miscellaneous
- Features
- Dual Stream
- Day/Night
- SD Card Local Storage
- Motion Detection
- Indoor/Outdoor
- Indoor
- Package Contents
- GV-MFD1501-4F 1.3MP H.264 Super Low Lux WDR Mini Fixed Dome
- Mini Fixed Dome
- Torx Wrench
- 2 x Self Tapping Screw
- 2 x Screw Anchor
- Cable Stopper
- USB / Audio Y-cable
- GV-IPCAM H.264 Quick Start Guide
- GV-IPCAM H.264 Software CD
- GV-NVR Quick Start Guide
- GV-NVR Software DVD
- Certifications & Standards
- CE
- FCC
- C-Tick
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
