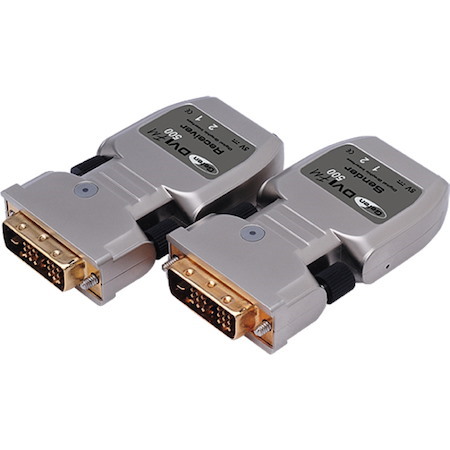

Painless, reliable DVI extension over fiber -- with built-in DVI-to-fiber signal converters and EDID storage, all in a tiny form factor!
The DVI-FM500 Extender lets you extend your DVI source up to 5,000 feet away using a 100% fiber optic extension solution. Attractive and compact DVI-to-fiber modules connect to each other via just two LC fiber optic cable strands. Extender units fit neatly behind equipment for a clean installation.
The on the fly EDID programming feature enables quick and correct synchronization of the video resolution to the display without any manual configuration. It's a great way to extend DVI easily and cleanly.
- General Information
- Manufacturer
- Gefen, Inc
- Manufacturer Website Address
- http://www.gefen.com
- Brand Name
- Gefen
- Product Type
- Video Extender Transmitter/Receiver
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 5000 ft
- Video
- Graphics Modes
- WUXGA
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- DVI In
- Yes
- DVI Out
- Yes
- Number of DVI Inputs
- 1
- Number of DVI Outputs
- 1
- Number of LC Ports
- 4
- Media & Performance
- Media Type Supported
- Optical Fiber
- Power Description
- Input Voltage
- 5 V DC
- Physical Characteristics
- Transmitter Height
- 0.50"
- Transmitter Width
- 1.50"
- Transmitter Depth
- 2.50"
- Miscellaneous
- Package Contents
- EXT-DVI-FM500 Video Console/Extender
- 2 x 5V Power Supply
- 1 x User Manual
- Environmentally Friendly
- Yes
