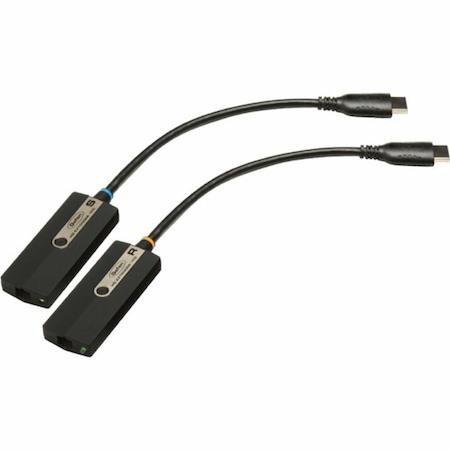

Pigtail module HDMI extension using a single-strand multimode fiber optic cable with HDCP support
The HDMI fiber optic pigtail module extender with HDCP support extends HDMI up to 1000 feet (300 meters) using a single-strand 50/125µm multimode (OM2) SC-terminated fiber optic cable. It supports resolutions up to 1080p Full HD and HD lossless audio formats like LCPM 7.1 audio, Dolby® Digital Plus, Dolby® TrueHD, and DTS-HD® Master Audio™. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules. The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend HDMI.
- General Information
- Manufacturer
- Gefen, Inc
- Manufacturer Website Address
- http://www.gefen.com
- Brand Name
- Gefen
- Product Type
- Video Extender Transmitter/Receiver
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 1000 ft
- Interfaces/Ports
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 1
- Number of SC Ports
- 2
- Media & Performance
- Media Type Supported
- Optical Fiber
- Power Description
- Input Voltage
- 5 V DC
- Physical Characteristics
- Transmitter Height
- 0.47"
- Transmitter Width
- 1.18"
- Transmitter Depth
- 10.71"
- Miscellaneous
- Package Contents
- Fiber Optic for HDMI (Pigtail Modules) (Sender Pigtail)
- Fiber Optic for HDMI (Pigtail Modules) (Receiver Pigtail)
- 1 x 5V DC Power Supply
- 1 x Quick-Start Guide
- Certifications & Standards
- FCC
- CE
- cULUS
- Country of Origin
- South Korea
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
