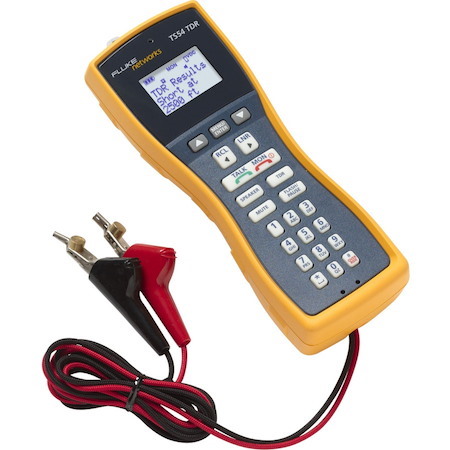

The innovative TS®54 TDR (Time Domain Reflectometer) is perfect for voice, data and video technicians and communication service provider technicians who need a best-in-class test set. There's nothing else like the TS54 TDR on the market today. No longer will you need to carry a separate TDR, toner, pair identifier-everything you need is in one newly redesigned and compact test set-that's a 62% weight reduction and a 20% cost reduction over existing products.
The TS54 delivers 20% more extreme weather protection with the latest advancements to our patented RainSafe™, DropSafe™ and DataSafe™ technology. This means the TS54 is weatherproof and rugged and able to butt in on live DSL lines to test POTS quality without crashing data service.
- General Information
- Manufacturer
- Fluke Networks
- Manufacturer Website Address
- http://www.flukenetworks.com
- Brand Name
- Fluke Networks
- Product Series
- TS54
- Product Type
- Testing Device
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Device Function
- Cable Length Testing
- Voice Signal Testing
- Video Signal Testing
- Voltage Monitor
- Current Measurement
- Display & Graphics
- Display Screen Type
- LCD
- Controls/Indicators
- Status Indicators
- Data Indication
- Voltage Indication
- Current (mA) Indication
- Battery Information
- Battery Size Supported
- 9V
- Battery Chemistry
- Alkaline
- Power Description
- Input Voltage
- 9 V DC
- Physical Characteristics
- Height
- 8.3"
- Width
- 3.2"
- Depth
- 2.6"
- Weight (Approximate)
- 1.16 lb
- Miscellaneous
- Certifications & Standards
- ANSI/ISA 82.02.01 (61010-1) 2004
- CAN/CSA-C22.2 No 61010-1-04
- UL 61010-1 (2004)
- IEC 61010-1:2010
- EMC EN61326-1
- Country of Origin
- Singapore
