- General Information
- Manufacturer
- Extreme Networks, Inc
- Manufacturer Website Address
- http://www.extremenetworks.com
- Brand Name
- Extreme Networks
- Product Series
- 4000
- Product Type
- Ethernet Switch

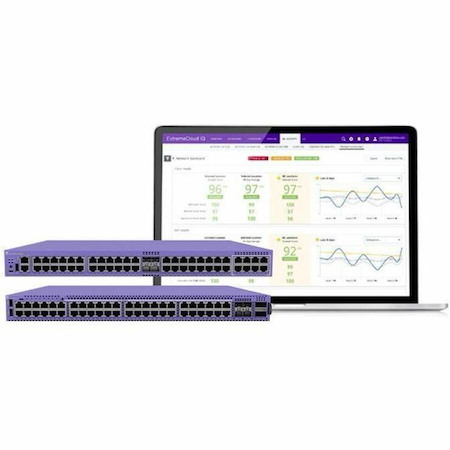

ExtremeCloud IQ Managed Switching for the Wired Edge
The 4000 Series are ExtremeCloud IQ managed Layer 2 switches that simplify network operations while delivering all the power and flexibility of a traditional enterprise access switch. As a fully cloud-managed solution, the 4000 Series is ideal for enterprises looking for easy-to-manage, cost-effective Ethernet connectivity for their campus, branch or distributed sites.
4000 Series cloud management combines instant actions along with centralized visibility that simplify switch deployment, provisioning, and troubleshooting. Machine learning tools help quickly isolate issues, continuous cloud-delivery ensures latest management feature updates, and zero-touch provisioning allows rapid deployment across sites.
With 90W PoE, multi-gigabit access, stacking and policy services, the 4000 Series is a switch platform capable of addressing the evolving connectivity requirements of today's and tomorrow's wired edge.
The 4000 Series consists of 4120 and 4220 model families:
The 4120 family is comprised of a 24-port and a 48-port model, both with multigigabit (1/2.5Gb) and 90W PoE support across all access ports, and high-speed 4 x 10/25Gb uplink plus 2 x 100Gb uplink/stack ports, making it ideal as a wired concentrator for high-density Wi-Fi/IoT environments.
The 4220 family includes 8, 12, 24, and 48-port models with gigabit and multi-gigabit (1/2.5/5Gb) access ports, up to 90W PoE, and 4 x SFP+ uplink/stack ports and is a highly flexible enterprise Layer 2 wired edge solution.
- Interfaces/Ports
- Total Number of Network Ports
- 48
- Uplink Port
- Yes
- Modular
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 48 x 2.5 Gigabit Ethernet Network
- 4 x 25 Gigabit Ethernet Expansion Slot
- 2 x 100 Gigabit Ethernet Stack
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- 2.5 Gigabit Ethernet
- 25 Gigabit Ethernet
- 100 Gigabit Ethernet
- Network Technology
- 2.5GBase-T
- 25GBase-X
- 100GBase-X
- I/O Expansions
- Expansion Slot Type
- SFP28
- QSFP28
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1ab
- IEEE 802.3ad
- IEEE 802.3ab
- IEEE 802.3
- IEEE 802.3bz
- IEEE 802.3ae
- IEEE 802.3by
- IEEE 802.3ba
- IEEE 802.3bm
- IEEE 802.3az
- IEEE 802.3bt
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 90 W
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.4"
- Depth
- 13"
- Weight (Approximate)
- 12.40 lb
- Miscellaneous
- Application/Usage
- Network
- Business
- Enterprise
- Campus
- IP Phone
- Wireless Access Point
