- General Information
- Manufacturer
- EVGA Corporation
- Manufacturer Website Address
- http://www.evga.com
- Brand Name
- EVGA
- Product Line
- SuperNOVA
- Product Type
- Power Supply
Introducing the EVGA SuperNOVA G7 - the most efficient, micro-sized 80 Plus� Gold-certified ATX power supply available. At only 130mm length, these power supplies find enough space to pack a half-bridge LLC Resonant Controller and DC-DC design, along with 100% Japanese Capacitors and better layout placement to allow the SuperNOVA G7 to reach near-Platinum efficiency. Despite its size, these units remain whisper quiet with a 120mm FDB fan and EVGA ECO Mode to keep the power supply silent at medium to low loads, which can be monitored in real-time with the System Load Indicator Bars on the side of the power supply. Backed with EVGA's 10-Year Limited Warranty and a full suite of protections, the EVGA SuperNOVA G7 is ready for play.
- Warranty
- Limited Warranty
- 10 Year
- Technical Information
- Specification Compliance
- ATX12V
- EPS12V
- Efficiency
- 93%
- Power Factor Correction (PFC)
- Active
- Number of Fans
- 1
- Protection Type
- Over Voltage
- Under Voltage
- Over Current
- Over Power
- Over Temperature
- Short Circuit
- Modular
- Yes
- ATI CrossFire Supported
- Yes
- NVIDIA SLI Supported
- Yes
- Features
- Low Noise
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Number of +12V Rails
- 1
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail
- -12 V DC @ 0.5 A
- 5 V DC @ 3 A
- 5 V DC @ 24 A
- 12 V DC @ 54.1 A
- Output Current
- 24 A
- 54.10 A
- 500 mA
- 3 A
- Output Power
- 650 W
- Input Frequency
- 60Hz
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Physical Characteristics
- Form Factor
- Internal
- Height
- 3.3"
- Width
- 5.9"
- Miscellaneous
- Package Contents

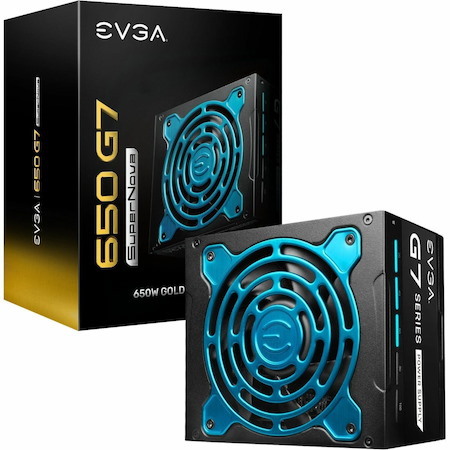

- SuperNOVA 650W Power Supply
- Power ON Self Tester
- Certifications & Standards
- TUV
- CB
- CE
- FCC
- RCM
- cTUVus
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- 80 Plus Gold
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 3 (ErP Lot 3)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
