- General Information
- Manufacturer
- EVGA Corporation
- Manufacturer Website Address
- http://www.evga.com
- Brand Name
- EVGA
- Product Line
- SuperNOVA
- Product Series
- G5
- Product Type
- Power Supply

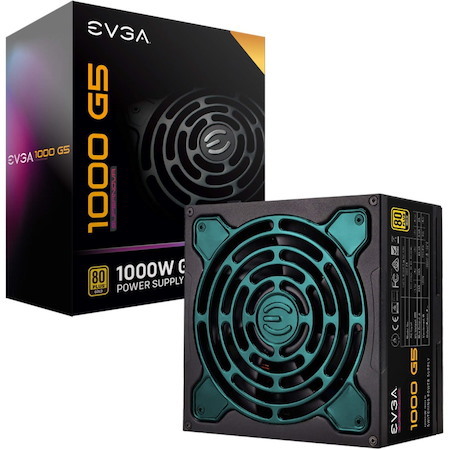

The EVGA SuperNOVA G5 joins the elite ranks of the EVGA 80 PLUS Gold power supplies. As the successor to the award-winning G3 series, the G5 power supplies continue to push the envelope with the latest certifications and Intel power-on standards. Starting with 80 PLUS Gold certification, a fully-modular cable design, 100% Japanese capacitors, and an ultra-quiet 135mm Fluid Dynamic bearing fan with EVGA ECO mode, these power supplies are built for performance and silence.
- Warranty
- Limited Warranty
- 10 Year
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Efficiency
- 92%
- Number of Fans
- 1
- Modular
- Yes
- ATI CrossFire Supported
- Yes
- NVIDIA SLI Supported
- Yes
- Power Description
- Number of +12V Rails
- 1
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- Output Voltage Detail
- 3.3 V DC @ 24 A
- 5 V DC @ 24 A
- 12 V DC @ 83.3 A
- 12 V DC @ 500 mA
- 5 V DC @ 3 A
- Output Current
- 24 A
- 83.30 A
- 500 mA
- 3 A
- Output Power
- 1000 W
- Physical Characteristics
- Form Factor
- Internal
- Height
- 3.4"
- Width
- 5.9"
- Depth
- 5.9"
- Weight (Approximate)
- 7 lb
- Miscellaneous
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- 80 Plus Gold
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 3 (ErP Lot 3)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
