- General Information
- Manufacturer
- EVGA Corporation
- Manufacturer Website Address
- http://www.evga.com
- Brand Name
- EVGA
- Product Series
- GQ
- Product Type
- Power Supply

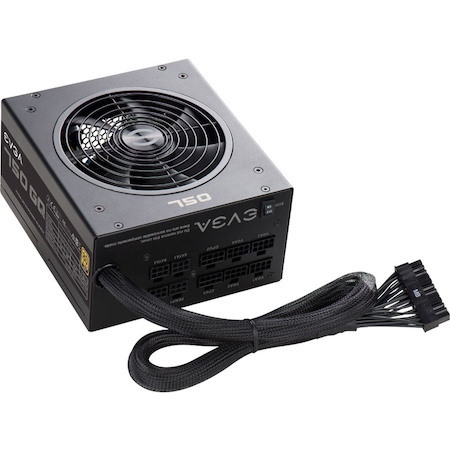

Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)
Introducing the latest in the EVGA power supply lineup; the GQ series. These power supplies take some of the best features from EVGA�s award winning power supplies, like EVGA ECO fan mode for near silent operation, Japanese Capacitor Design and a highly efficient design, at an excellent value. These new power supplies are 80 Plus Gold rated and offer an outstanding 5 Year Warranty that�s backed by world class EVGA support.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Efficiency
- 92%
- Number of Fans
- 1
- Modular
- Yes
- ATI CrossFire Supported
- Yes
- NVIDIA SLI Supported
- Yes
- Power Description
- Number of +12V Rails
- 1
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 3.3 V
- 5 V
- 12 V
- -12 V
- Output Voltage Detail
- 3.3 V @ 24 A
- 5 V @ 24 A
- 12 V @ 62.4 A
- 5 V @ 3 A
- -12 V @ 500 mA
- Output Current
- 24 A
- 62.40 A
- 3 A
- 500 mA
- Output Power
- 750 W
- Physical Characteristics
- Height
- 3.3"
- Width
- 5.9"
- Depth
- 6.5"
- Weight (Approximate)
- 7 lb
- Miscellaneous
- Certifications & Standards
- cTUVus
- TÜV
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- 80 Plus Gold
- Energy Efficiency Compliance
- Energy-related Products Directive (ErP)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
