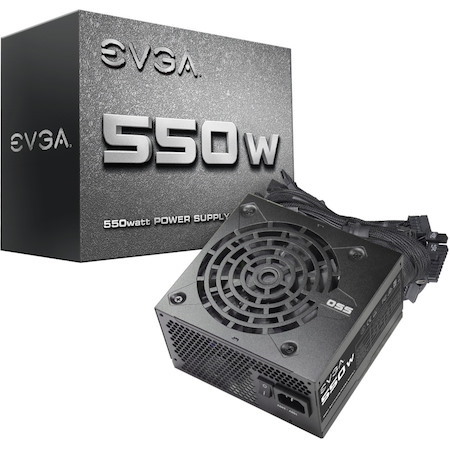

When building on a budget, the EVGA 550W power supply is a great choice at a low cost. Supporting 43A on a single +12V rail provides more options without having to reduce your component requirements. The EVGA 550W offers the connections and protections needed for basic system builds. With a standard 2 year warranty and ultra quiet fan design the EVGA 550W power supply will be a great asset for your next build on a budget.
- General Information
- Manufacturer
- EVGA Corporation
- Manufacturer Website Address
- http://www.evga.com
- Brand Name
- EVGA
- Product Type
- Power Supply
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Number of Fans
- 1
- Modular
- No
- Power Description
- Number of +12V Rails
- 1
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- Output Voltage Detail
- 3.3 V DC @ 24 A
- 5 V DC @ 15 A
- 12 V DC @ 43 A
- 5 V DC @ 3 A
- -12 V DC @ 300 mA
- Output Current
- 24 A
- 15 A
- 43 A
- 3 A
- 300 mA
- Output Power
- 550 W
- Physical Characteristics
- Form Factor
- Internal
- Height
- 3.3"
- Width
- 5.9"
- Depth
- 5.5"
- Weight (Approximate)
- 3 lb
- Miscellaneous
- Certifications & Standards
- TÜV
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
