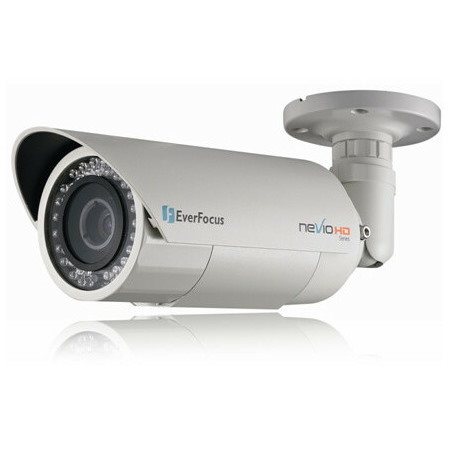

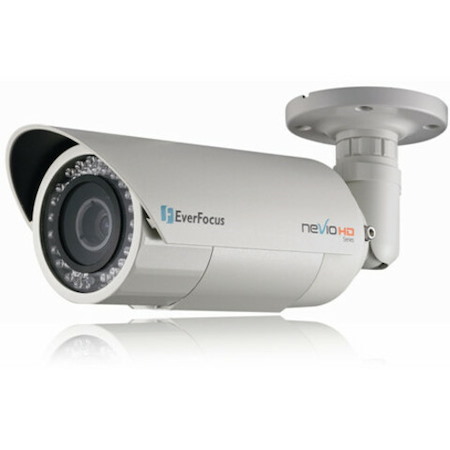

The EZN Plus series is an outdoor bullet camera delivering image quality of up to 3-megapixel. The camera supports both H.264 and MJPEG compression formats. The IP66-rating and vandal proof housing make it suitable for outdoor use. The IR LEDs are also implemented for infrared illumination in night vision applications.
- General Information
- Manufacturer
- EverFocus Electronics Corporation
- Manufacturer Website Address
- http://www.everfocus.com
- Brand Name
- EverFocus
- Product Series
- EZN Plus
- Product Type
- Network Camera
- Warranty
- Limited Warranty
- 3 Year
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/3"
- White Balance Modes
- Auto
- Manual
- Indoor
- Outdoor
- One Push
- Color Supported
- Color
- Monochrome
- Field of View
- 20° to 100°
- Video
- Video Formats
- H.264
- MJPEG
- Maximum Video Resolution
- 1280 x 1024
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Zoom
- Minimum Focal Length
- 2.80 mm
- Maximum Focal Length
- 10 mm
- Lens Included
- Yes
- Maximum Aperture
- f/1.3
- Optical Zoom
- 3.6x
- Digital Zoom
- 10x
- Focus Modes
- Adjustable
- Exposure
- Shortest Shutter Speed
- 1/60000 Second
- Longest Shutter Speed
- 1/125 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Protocols
- TCP/IP
- IPv6
- UDP
- ICMP
- DHCP
- NTP
- DNS
- DDNS
- SMTP
- SNMP
- FTP
- HTTP
- HTTPS
- PPPoE
- UPnP
- Bonjour
- RTP
- RTSP
- RTCP
- IGMP
- ARP
- ONVIF
- PSIA
- Interfaces/Ports
- Analog Video Out
- Yes
- Network (RJ-45)
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Power Description
- Maximum Power Consumption
- 8 W
- Physical Characteristics
- Durability
- Vandal Resistant
- Weather Resistant
- Vandal Proof
- Height
- 3.8"
- Width
- 3.8"
- Depth
- 14.2"
- Weight (Approximate)
- 3.57 lb
- Miscellaneous
- Features
- Motion Detection
- 2D Digital Noise Reduction (2DNR)
- 3D Digital Noise Reduction
- Noise Reduction
- SD Card Local Storage
- Tamper Detection
- Indoor/Outdoor
- Outdoor
- Package Contents
- EZN3160 1.3 Megapixel + Wide Dynamic
- 4-Pin Terminal Block
- Quick Mounting Ring
- Software CD
- RJ-45 Connector
- Quick Installation Guide
- Mounting Kit
- System Requirements
Microsoft Internet Explorer 7 or above
- Compatibility
- NTSC
- PAL
- Certifications & Standards
- IP66
- CE
- FCC
- Ingress Protection Rating
- IP66
