- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Tripp Lite series
- Product Type
- Standard Power Cord

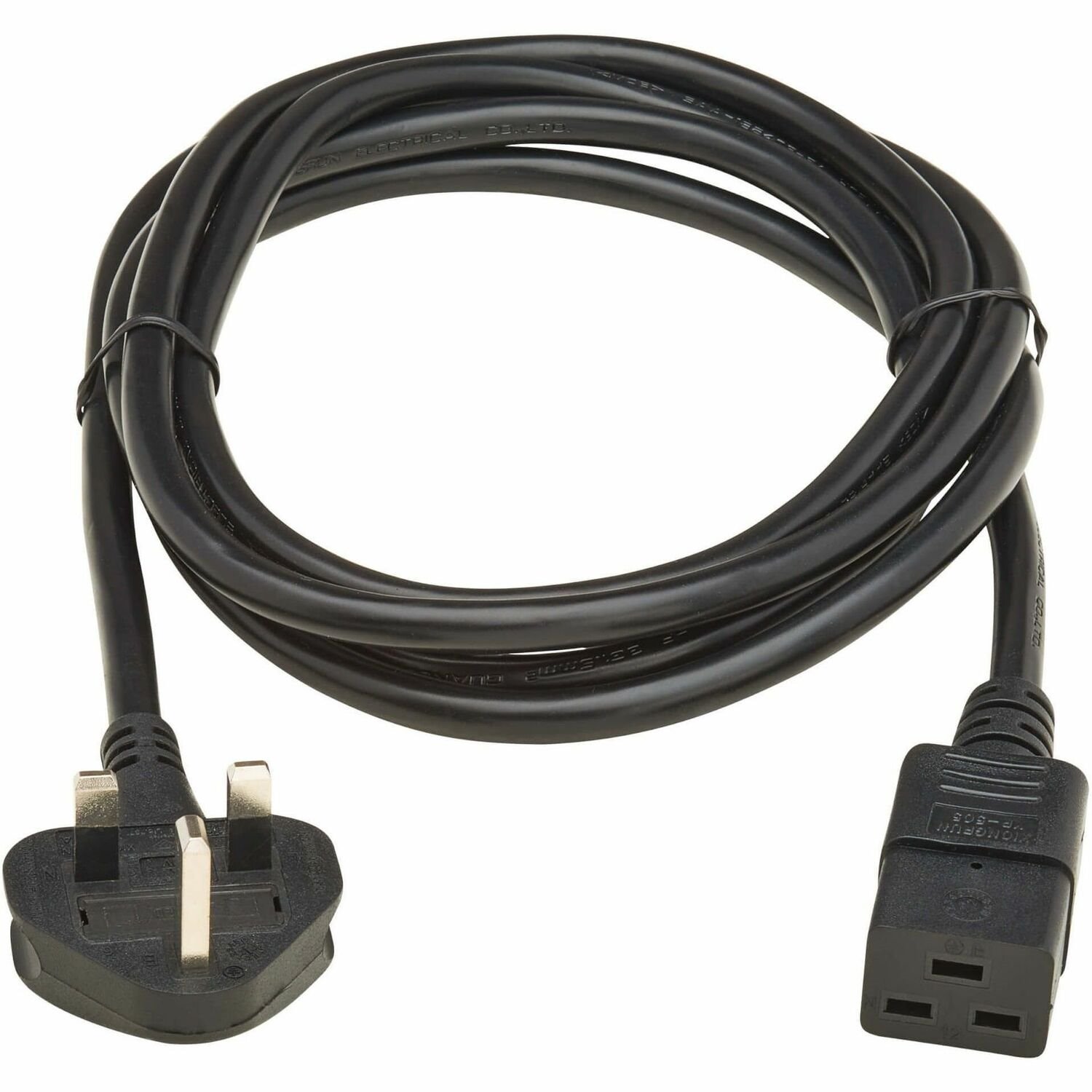

Connects a switch or blade server with a C20 inlet to a PDU or UPS with BS 1363 outlets.
Features | UK Power Cord Connects Data Center Equipment to Reliable AC Power
This VDE-compliant power cable connects a switch, router, blade server or other device with a C20 inlet to a PDU, UPS system or surge protector with BS 1363 outlets. It can also extend an existing power connection up to 2.5 meters (8.2 feet). The P052-2P5M-UK features a BS 1363 end for connecting to an AC power source and an IEC-320-C19 end for connecting to a network device in a data center or other IT application.
H05VV-F Jacket Is Fully VDE-Compatible for European Applications
The 0.75mm2 enhanced PVC jacket complies with VDE, CE and UKCA standards for data centers, racks, workstations and other IT applications in Europe.
- Technical Information
- First End Connector Type
- BS 1363
- First End Connector Detail
- 1 x 3-pin BS 1363 Male
- Second End Connector Type
- IEC 60320 C19
- Second End Connector Detail
- 1 x 3-pin IEC 60320 C19 Female
- Device Supported
- Computer
- Switch
- PDU
- UPS
- Router
- Surge Protector
- Blade Server
- Localization
- United Kingdom
- Gauge
- 0.75mm2
- Number of Conductors
- 3
- Power Description
- Voltage Rating
- 250 V AC
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Jacket Material
- Polyvinyl Chloride (PVC)
- Height
- 10"
- Width
- 8"
- Depth
- 0.5"
- Cord Length
- 8.20 ft
- Weight (Approximate)
- 0.44 lb
- Environmental Conditions
- Minimum Operating Temperature
- 5°F (-15°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Minimum Storage Temperature
- 5°F (-15°C)
- Maximum Storage Temperature
- 140°F (60°C)
- Miscellaneous
- Country of Origin
- China
