- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Tripp Lite series
- Product Line
- SmartRack
- Product Type
- Rack Door
Rack Cooling Fans for 45U Standard-Width Enclosures

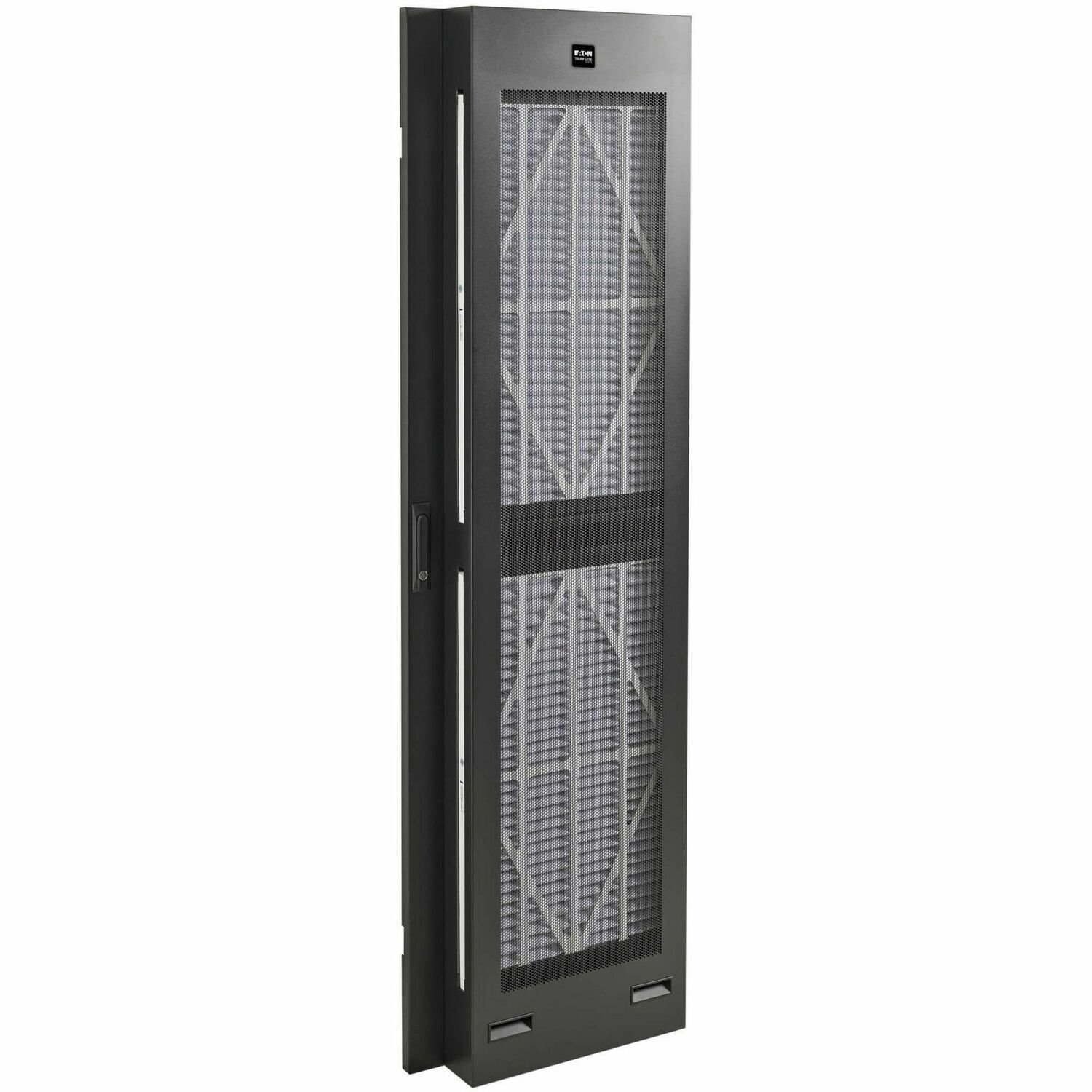

The SmartRack® SRFFD4524 is a server rack door with cooling fans and air filters integrated into it. Designed specifically for SmartRack's 45U standard-width rack enclosures, these fans help keep rack-mounted equipment cool to maintain top performance and avoid failures that can lead to costly downtime, damage or data loss.
Increases Airflow and Helps Keep Air Intake Clean
The SRFFD4524 includes four separate fan panels with four 120V fans per panel (16 fans total) with each fan providing a maximum airflow of 82CFM at 50Hz and 93CFM at 60Hz. It also comes with a perforated outer panel to allow air to pass through, fan guards and two pre-installed dust filters.
Plug-and-Play Construction for Easy Installation
All necessary toolless mounting hardware is included. The SRFFD4524 is made from heavy-duty cold-rolled steel with a black finish. The six-foot power cords with NEMA 5-15P plugs connect to any compatible wall outlet, PDU or UPS system.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Application/Usage
- Cabinet
- Enclosure
- Server
- Equipment Rack
- Features
- Cooling Fan
- Front Door
- Heavy Duty
- Cable Length
- 72"
- Power Description
- Plug/Connector Type
- NEMA 5-15P
- Physical Characteristics
- Form Factor
- Rack-mountable
- Color Family
- Black
- Product Color
- Black
- Product Material
- Cold Rolled Steel
- Height
- 80.6"
- Width
- 23.5"
- Depth
- 6.2"
- Rack Height
- 45U
- Miscellaneous
- Package Contents
- 4 x Fan panels with 4 fans per panel
- 2 x Air filters, 18 x 36 x 1 in.
- Perforated outer panel
- Fan guards
- C13 to NEMA 5-15P power cord, 6 ft. (1.8 m)
- Mounting hardware
- Owner's manual
