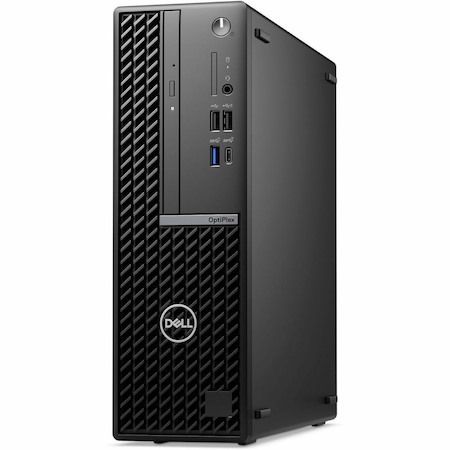

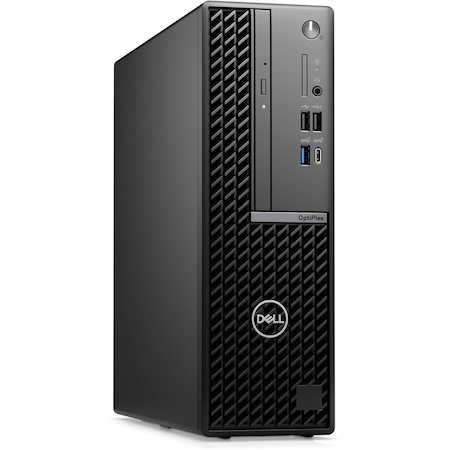

Designed for flexible performance options in the slimmest footprint possible, the OptiPlex Small Form Factor provides a clean desk solution while being highly expandable with no compromise on port options. Features an Intel Core processor, three native DisplayPorts, three M.2 SSD slots and a USB-C 3.2 Gen 2x2 (20 Gbps) port.
- General Information
- Manufacturer
- Dell Technologies
- Manufacturer Website Address
- http://www.delltechnologies.com
- Brand Name
- Dell
- Product Line
- OptiPlex
- Product Series
- 7000
- Product Type
- Desktop Computer
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS
- Technical Information
- Release Year
- 2024
- Processor
- Processor Manufacturer
- Intel
- Processor Type
- Core i5
- Processor Generation
- 14th Gen
- Processor Model
- i5-14500
- Processor Core
- Tetradeca-core (14 Core)
- Processor Speed
- 2.60 GHz
- Maximum Turbo Speed
- 5 GHz
- vPro Technology
- Yes
- Processor Threads
- 20
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Standard Memory
- 16 GB
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR5 SDRAM
- Memory Configuration
- 2 x 8GB
- Total Number of Memory Slots
- 4.0
- Number of Occupied Memory Slots
- 2
- Storage
- Drive Type
- SSD
- Total Solid State Drive Capacity
- 512 GB
- Solid State Drive Interface
- PCI Express NVMe 4.0
- SSD Form Factor
- M.2
- Optical Drive Type
- DVD-Writer
- Optical Media Supported
- DVD±R/±RW
- Display & Graphics
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- UHD Graphics 770
- Graphics Memory Technology
- DDR5 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Wireless LAN
- No
- Input Devices
- Keyboard Localization
- English (US)
- Interfaces/Ports
- Number of HDMI Outputs (Rear)
- 1
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 10
- Number of USB 2.0 Ports (Front)
- 2
- Number of USB 2.0 Ports (Rear)
- 2
- Number of USB 3.2 Gen 1 Ports
- 3
- Number of USB 3.2 Gen 2 Ports
- 2
- Number of USB 3.2 Gen 2x2 Type-C Ports
- 1
- Number Of Ethernet Ports
- 1
- Number of DisplayPort Outputs (Rear)
- 3
- DisplayPort (Rear)
- Yes
- Optional Ports
Details regarding optional ports aggregated from the information available for this product's family/series
- 1 Video Port (HDMI 2.1/DisplayPort™ 1.4a/VGA/USB Type-C with DisplayPort™ Alt mode) (optional)
- 1 Serial Port (optional)
- Operating System
- Operating System Platform
- Windows
- Operating System
- Windows 11 Pro
- Operating System Language
- English/Spanish/French/Brazilian Portuguese
- Power Description
- Maximum Power Supply Wattage
- 260 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Small Form Factor
- Height
- 11.4"
- Width
- 3.7"
- Depth
- 11.5"
- Weight (Approximate)
- 12.39 lb
- Miscellaneous
- Package Contents
- OptiPlex Small Form Factor (Plus 7020)
- Quick Start Guide
- System Power Cord (US)
- Safety/Environment And Regulatory Guide (English/French Multi-language)
- Wireless Mouse
- Wireless Keyboard
- USB Receiver
- Features
- Security Slot
- Energy Star
- Yes
- Country of Origin
- Mexico
- Environmentally Friendly
- Yes
- Environmental Certification
- Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
- Energy Efficiency Certification
- ENERGY STAR 8.0
