- General Information
- Manufacturer
- Dell Technologies
- Manufacturer Website Address
- http://www.delltechnologies.com
- Brand Name
- Dell
- Product Line
- Smart-UPS On-Line
- Product Type
- Double Conversion Online UPS

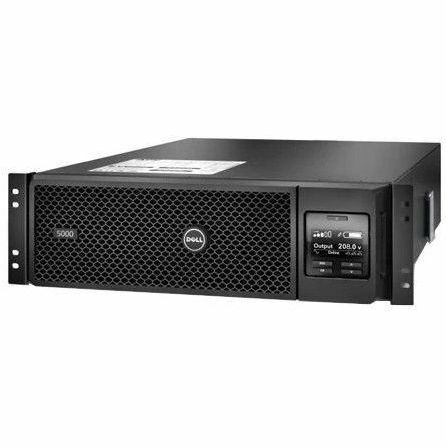

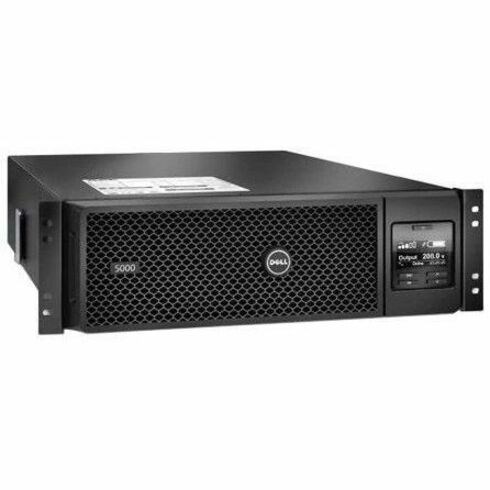

The Dell Smart-UPS Online DLRT5KRMXLT provides instant battery power to your critical electronic devices, keeping you and your business productive even during power outages. It delivers high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. All 4 outlets provide battery backup power and safeguard your expensive electronics from potentially harmful power conditions such as spikes and surges.
- Provides instant, clean power to your critical electronic devices during a power outage
- Four battery and surge protected outlets ensure all of your critical electronics will be backed-up and protected
- Two switched outlet groups allow you to reboot hung equipment, automatically shed less critical equipment, and sequence both the startup and shutdown of attached equipment
- The pure sine wave output while online or on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
- Green Mode bypasses unused electrical components to achieve high operating efficiency without sacrificing power protection
- Intuitive LCD panel provides Smart-UPS and power status at a glance
- Warranty
- Limited Warranty
- 3 Year
- Directly Connected Equipment Guarantee
- $150000
- Technical Information

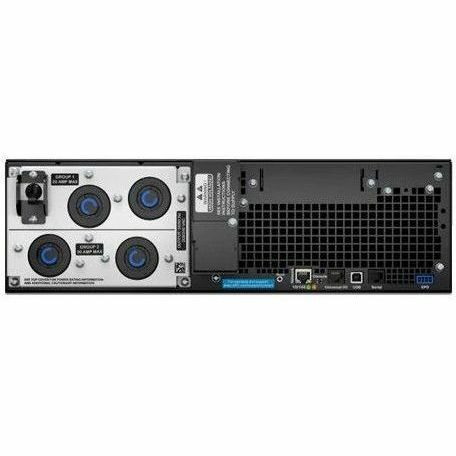

- Plug/Connector Type
- NEMA L6-30P
- Receptacle Type
- NEMA L6-20R
- NEMA L6-30R
- Receptacle Detail
- 2 x NEMA L6-20R
- 2 x NEMA L6-30R
- Number of Battery & Surge Outlets
- 4
- Application/Usage
- Electronic Device
- Business
- Server
- Voice/Data Network
- Medical Laboratory
- Light Industrial Application
- Mission Critical Equipment
- Electronic Equipment
- Surge Suppression
- Yes
- Features
- Audible Alarm
- Battery Management System (BMS)
- Power Description
- Load Capacity (VA)
- 5000 kVA
- Load Capacity (Watt)
- 4800 W
- Input Voltage
- 230 V AC
- 120 V AC
- Input Voltage Range
- 100 V AC - 275 V AC
- Output Voltage
- 208 V AC
- 240 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Sine Wave
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- SNMP/Telnet/HTTP/RS-232
- SNMP/Modbus
- SmartSlot
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- USB
- Yes
- EPO Port
- Yes
- Expansion Slot Detail
- 1 (total) / 1 (free) x SmartSlot
- Battery Information
- Battery Characteristics
- Maintenance-free, Sealed, Leak-proof
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 4.40 Minute
- Backup/Run Time (Half Load)
- 12.60 Minute
- Physical Characteristics
- Height
- 5.1"
- Width
- 17"
- Depth
- 28.3"
- Rack Height
- 3U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 120.15 lb
- Miscellaneous
- Package Contents
- Smart-UPS On-Line 5000VA Rack/Tower UPS
- Tower Stand
- Rack Mounting Kit
- Certifications & Standards
- cUL
- UL 1778
- FCC Part 15 A
- Software Included
- APC PowerChute
- Energy Star
- Yes
