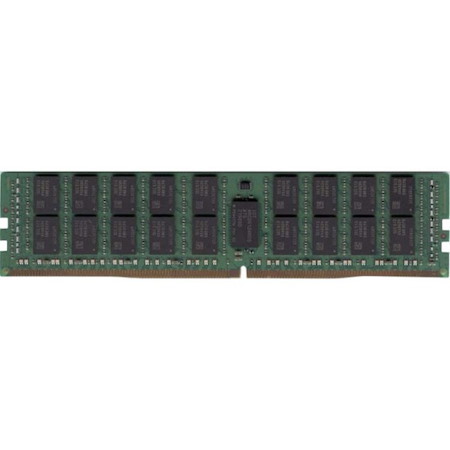

DTM68116-S is a registered 4Gx72 memory module, which conforms to JEDEC's PC4-2400 standard. The assembly is Dual-Rank with each rank containing of eighteen Samsung 2Gbx4 DDR4-2400 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com
- Brand Name
- Dataram
- Product Type
- RAM Module
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Memory Size
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Number of Modules
- 1 x 32GB
- Memory Speed
- 2400 MHz
- Memory Standard
- DDR4-2400/PC4-19200
- Error Checking
- ECC
- Signal Processing
- Registered
- CAS Latency
- CL17
- Device Supported
- Server
- Physical Characteristics
- Number of Pins
- 288-pin
- Form Factor
- DIMM
- Thickness
- 156.7 mil
- Width
- 1.2"
- Length
- 5.3"
- Miscellaneous
- Country of Origin
- United States
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
