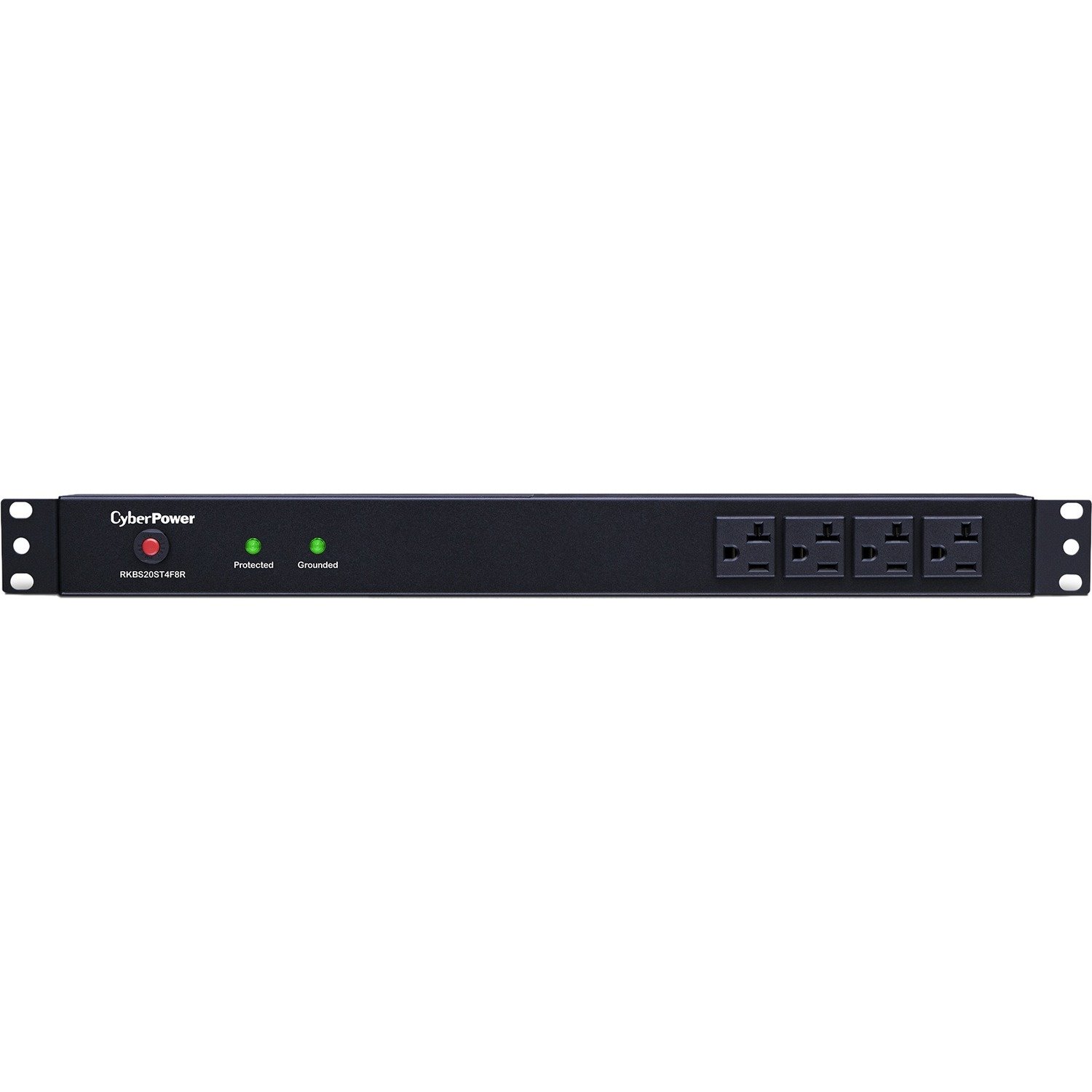

The CyberPower 12-outlet (4 Front and 8 Rear) rack mounted Rackbar surge suppressor (RKBS20ST4F8R) provides 120V 20A output and a surge suppression rating of 1,800 joules. It distributes power to 12 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug. Designed for data centers and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Rackbar Surge
- Product Type
- Surge Suppressor/Protector
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Plug/Connector Type
- NEMA L5-20P
- Receptacles
- 12 x NEMA 5-20R
- Protection Type
- Surge
- Power Description
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC
- Maximum Line Current
- 20 A
- Surge Energy Rating
- 1800 J
- Physical Characteristics
- Power Cord/Cable Length
- 15 ft
- Height
- 1.8"
- Width
- 17.5"
- Depth
- 2.3"
- Weight (Approximate)
- 4.90 lb
- Miscellaneous
- Package Contents
- Rackbar Surge Suppressor RM 1U RKBS20ST4F8R 20A 12-Outlet
- Mounting Brackets (2 Sets)
- Cord Retention Tray
- Cord Organizers
- User Manual
- Additional Information
- Color: Black
Status Indicators:
- Surge Protection
- Grounded Protection
- Compatibility
- Data Centers
- PCs
- Workstation
- Server
- Internetworking Equipment
- Telecommunication Equipment
- Security System
- Audio/Video Equipment
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
