- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Type
- Rack Cabinet

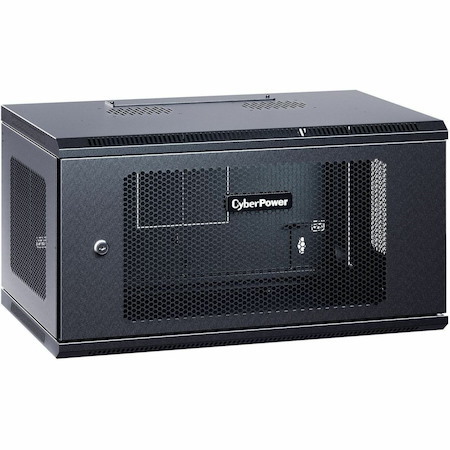

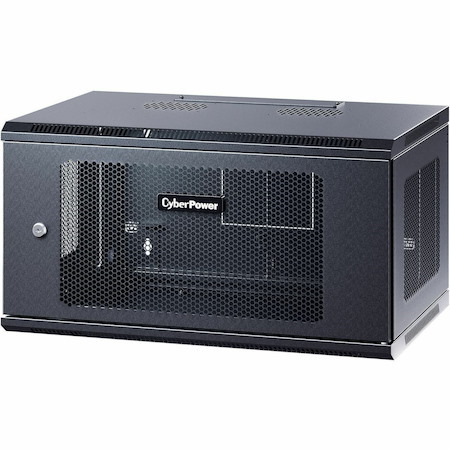

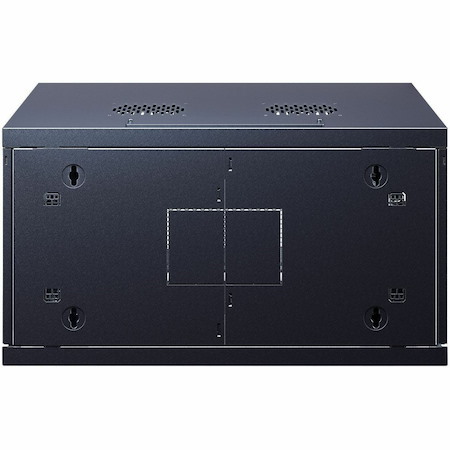

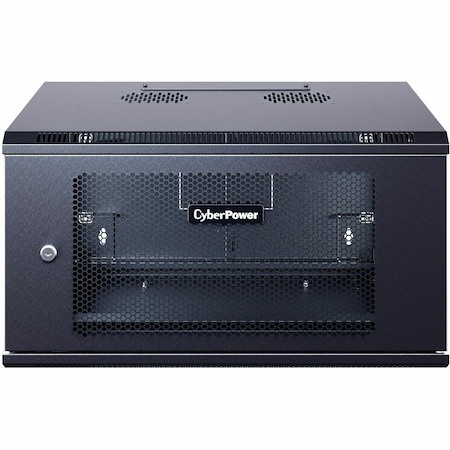

The CR6U61003 is designed for use in network closets, classrooms, and other locations. This wall mount rack houses network switches and patch panels up to 20.3" deep. It includes convenient top panel cable access openings, perforated front door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR6U61003 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Application/Usage
- Switch
- Patch Panel
- Features
- Perforated Door
- Lockable Door
- Lockable Side Panel
- Removable Door
- Removable Side Panel
- Reversible Front Door
- Vented
- Reversible Door
- Physical Characteristics
- Form Factor
- Wall Mountable
- Color Family
- Black
- Product Color
- Black
- Product Material
- Metal
- Static/Stationary Weight Capacity
- 132.28 lb
- Height
- 12.6"
- Width
- 23.6"
- Depth
- 23.6"
- Weight (Approximate)
- 29.70 lb
- Rack Height
- 6U
- Miscellaneous
- Package Contents
- CR6U61003 Wall Mount Enclosure
- Mounting Hardware
- Additional Information
- Physical Dimensions - (WxHxD) (cm) : 59.94 x 32.0 x 59.94 (cm)
- Physical Dimensions - (WxHxD) (in) : 23.6 x 12.6 x 23.6 (in)
- Physical Dimensions - (WxHxD) (mm) : 599 x 320 x 599 (mm)
- Weight (kg) : 13.47
- Weight (lb) : 29.7
- Shipping Dimensions - (WxHxD) (cm) : 67.01 x 45.42 x 66.7 (cm)
- Shipping - Dimensions (WxHxD, in) : 26.38 x 17.88 x 26.26 (in)
- Shipping - Dimensions (WxHxD, mm) : 670.05 x 454.15 x 667.0 (mm)
- Shipping - Weight (kg) : 19.5
- Shipping - Weight (lb) : 43
- USB Charge Port : No
- Cable Access Opening Dimensions : 9.8 x 2.2 in (249 x 56 m)
- Color : Black
- Door Type : Hex Perforated Metal Door
- Factory Default Mounting Depth : 17.2 ft (436.9 mm)
- Material of Construction : Metal
- Max. Mounting Depth (in) : 20.3
- Max. Mounting Depth (mm) : 516
- Min. Mounting Depth (in) : 1.9
- Min. Mounting Depth (mm) : 47
- Rack Angle Mounting Hole Type : Square Mounting Holes
- Rack Height : 6U
- Weight Capacity - stationary load (kg) : 60
- Weight Capacity - stationary load (lbs) : 132.3
- Cable Access : Top and Bottom Openings
- Lockable Doors and Side Panels : Yes, keyed alike
- Numbered Rack Units : Yes
- PE Grounding Point : Yes
- Removable Doors and Side Panels : Yes
- Reversible Front Door : Yes
- Ventilation : Perforated Doors
- Protection Class : IP20
- Environmental : RoHS Compliant
- Safety : EIA-310E, IEC-60297-1, 2, ASTM-D610, ASTM-B117
- Product Warranty : 5 Year Limited Warranty
- Assembly Required
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
