- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Line
- Smart App Sinewave
- Product Type
- Line-interactive UPS

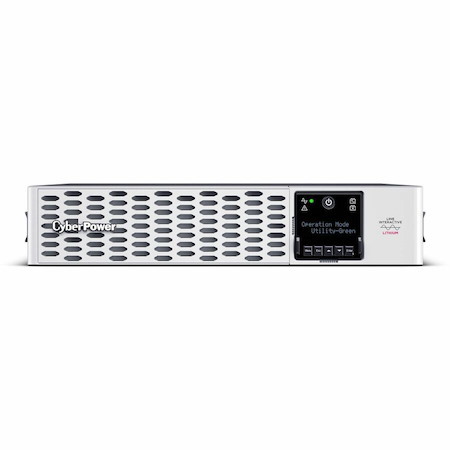

The lithium PRL1500RT2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

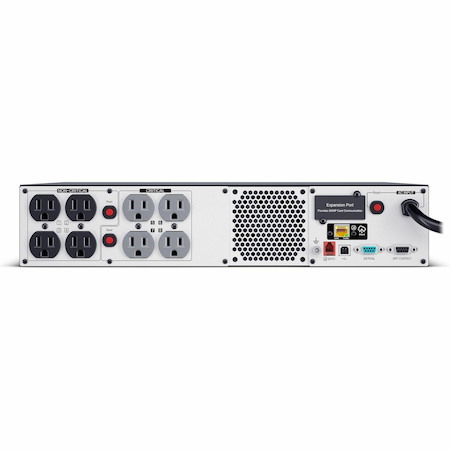

The Smart App Sinewave PRL1500RT2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PRL1500RT2UC also has an innovative LCD panel that rotates 90°,and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
Lithium battery chemistry is a maintenance free premium battery technology with a longer lifespan and higher efficiency.
This model has built-in Cloud monitoring, and accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a five-year warranty, you can trust CyberPower's commitment to the quality of the PRL1500RT2UC.
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
5 years (Including Battery) and $400,000 connected equipment guarantee.
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 8 x NEMA 5-15R
- Number of Battery & Surge Outlets
- 8
- Number of Critical Load Outlets
- 4
- Overload Protection
- Yes
- Cord Length
- 10 ft
- Transfer Time
- 11 ms
- EMI/RFI Noise Filter
- Yes
- Application/Usage
- Corporate
- Server
- Network Device
- Storage Device
- Telecommunication
- VoIP
- Features
- Audible Alarm
- Power Description
- Load Capacity (VA)
- 1500 VA
- Load Capacity (Watt)
- 1500 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 70 V AC - 155 V AC
- 100 V AC - 125 V AC
- Output Voltage
- 100 V AC
- 125 V AC
- 110 V AC
- 120 V AC
- Input Frequency
- 47 Hz
- 63 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 2430 J
- Circuit Breaker
- Yes
- Output Power Factor
- 1
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- SNMP/HTTP Remote Monitoring
- RS-232
- Dry Contact
- Alarm
- Battery Mode
- Low Battery
- Overload
- Over-charge
- Controls/Indicators
- Status Indicators
LED Indicators:
- Power On
- Line Mode
- Battery Mode
- UPS Fault
LCD Display:
- UPS Status
- UPS Setup
- Control Management
- Testing Options.
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- EPO Port
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 4
- Battery Characteristics
- Maintenance-free
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Size
- 12.8V
- Battery Capacity
- 6000 mAh
- Backup/Run Time (Full Load)
- 8.70 Minute
- Backup/Run Time (Half Load)
- 18.70 Minute
- Typical Battery Recharge Time
- 2 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 9843 ft
- Maximum Storage Elevation
- 49213 ft
- Operating Humidity
- 0% - 95%
- Storage Relative Humidity
- 0% - 95%
- Thermal Dissipation
- 28.34 W
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Black
- Silver
- Height
- 3.4"
- Width
- 17.1"
- Depth
- 19.7"
- Rack Height
- 2U
- Form Factor
- Tower/Rack Convertible
- Weight (Approximate)
- 54.19 lb
- Miscellaneous
- Additional Information
- Active PFC Compatible : Yes
- Energy Saving : GreenPower UPS™ Bypass Technology
- Energy Star Certified : Yes
- UPS Topology : Line Interactive
- Battery Quantity : 4
- Battery Size : 12.8 V / 6 Ah
- Battery Type : Lithium Ion Battery
- Hot Swappable : Yes
- Replacement Battery Cartridge : RB1260X4
- Replacement Battery Cartridge Quantity : 1
- Runtime at Full Load : 8.7 min
- Runtime at Half Load : 18.7 min
- Typical Recharge Time : 2hrs (Recover to 90% after full load discharge)
- User Replaceable Battery : Yes
- Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm)
- Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in)
- Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm)
- Weight (kg) : 24.58
- Weight (lb) : 54.2
- Shipping Dimensions - (WxHxD) (cm) : 56.13 x 27.43 x 61.98 (cm)
- Shipping - Dimensions (WxHxD, in) : 22.1 x 10.8 x 24.4 (in)
- Shipping - Dimensions (WxHxD, mm) : 561.34 x 274.32 x 619.76 (mm)
- Shipping - Weight (kg) : 30.98
- Shipping - Weight (lb) : 68.3
- Adjustable Voltage Range : 70 - 155 VAC
- Circuit Breaker : 15 A
- Cord Length : 10 ft (3.0 m)
- Input Frequency Range : 47 Hz - 63 Hz
- Input Plug Type : NEMA 5-15P
- Input Voltage : 100 - 125 VAC
- Input Voltage Range : 70 VAC - 155 VAC
- Nominal Input Voltage : 100 - 120 VAC
- Plug Style : Right Angle - 45° Offset
- Automatic Voltage Regulation : Double Boost
- On AC WaveForm : Sine Wave
- On Battery Frequency : 50/60 Hz ± 1%
- On Battery Voltage : 100/110/120/125 VAC ± 5%
- On Battery Waveform : Sine Wave
- Outlets - Battery & Surge Protected : 8
- Outlets - Critical Load : 4
- Outlets - Total : 8
- Outlet Type COMPUTED : 8 - NEMA 5-15R
- Output Power Factor : 1
- Overload Protection : Internal Circuitry Limiting
- Typical Transfer Time : 6ms; Max 11ms at normal sensitivity
- USB Charge Port : No
- VA : 1500 VA
- Watts : 1500 W
- EMI/RFI Filtration COMPUTED : Yes
- Surge Suppression (Joules) : 2430 J
- EMI/RFI Filtration COMPUTED : Yes
- Surge Suppression (Joules) : 2430 J
- Audible Alarms : Battery Mode
- Emergency Power Off (EPO) Port : Yes
- HID Compliant USB Port : Yes
- LCD : Multifunction LCD
- LED Indicators : Power On
- Management Cable : USB Cable
- Serial Port : 1 RS232
- SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205
- Software (Free Download) : PowerPanel® Business
- Color : Silver/Black
- Form Factor : Rack / Tower
- Material of Construction : Metal
- Rack Height : 2U
- AC Mode Thermal Dissipation : 96.7 BTU/hr
- Operating Elevation : 0 - 9843 ft (0 - 3000 m)
- Operating Relative Humidity : 0 - 95 % (non-condensing)
- Operating Temperature : 32 - 104 °F (0 - 40 °C)
- Storage Elevation : 0 - 49213 ft (0 - 14999 m)
- Storage Temperature : 5 - 113 °F (-15 - 45 °C)
- Environmental : RoHS Compliant
- Safety : UL1778
- CEG Amount : $400000.00
- Connected Equipment Guarantee : Lifetime
- Product Warranty : 5 Year Limited Warranty
- Certifications & Standards
- UL1778
- CSA C22.2 No 107.3
- FCC Class B
- DOE Compliant
- VCCI
- Software Included
- PowerPanel® Business
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- ENERGY STAR 6.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
