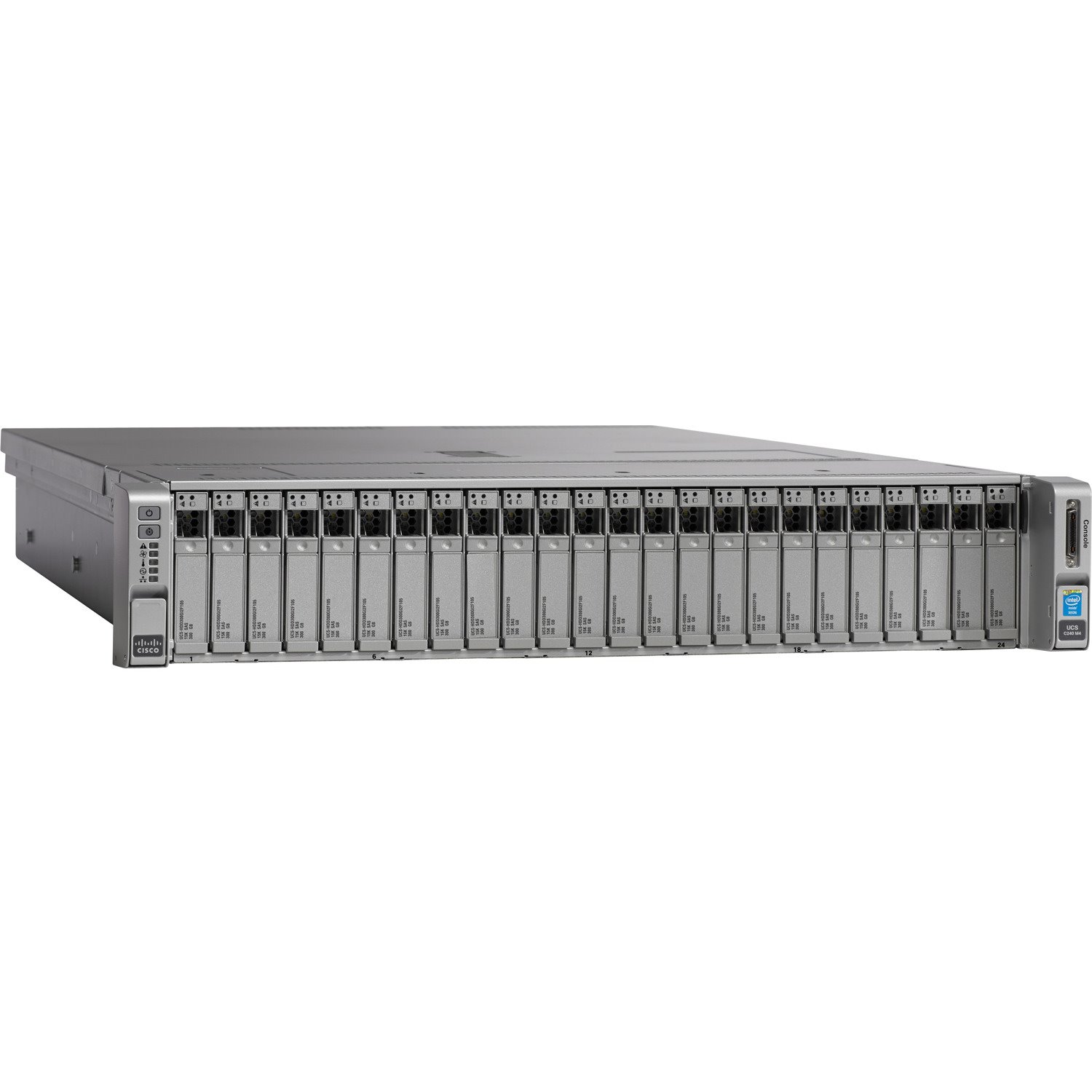

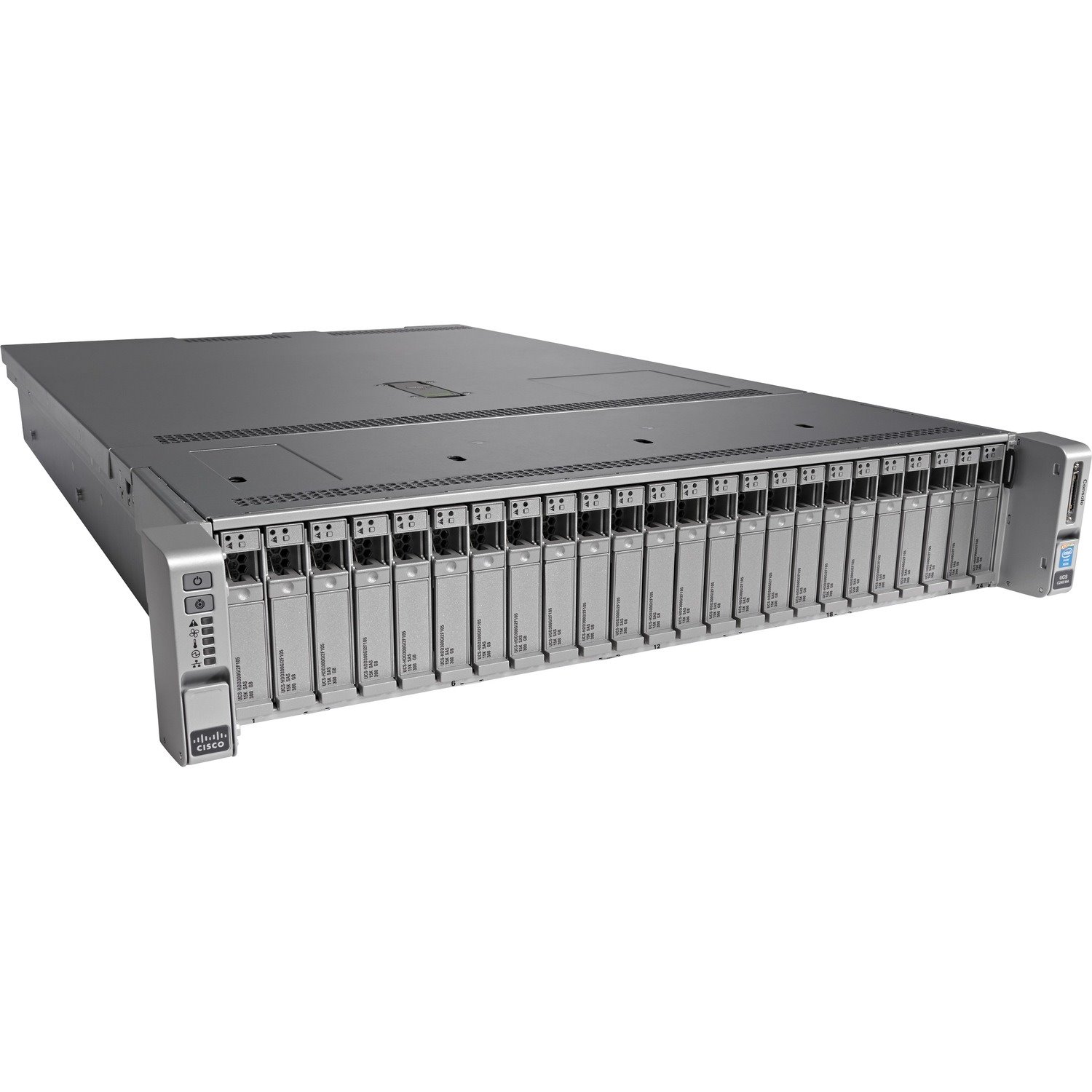

The Cisco UCS® C240 M4 Rack Server is our newest 2-socket, 2-rack-unit (2RU) rack server (Figure 1.) It offers outstanding performance and expandability for a wide range of storage and I/O-intensive infrastructure workloads, from big data to collaboration. The enterprise-class Cisco UCS C240 M4 server extends the capabilities of the Cisco Unified Computing System™ (Cisco UCS) portfolio in a 2RU form factor with the addition of the Intel® Xeon® processor E5-2600 v3 product family, which delivers a superb combination of performance, flexibility, and efficiency.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- C240 M4
- Product Type
- Server
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 2
- Processor Type
- Xeon
- Processor Model
- E5-2680 v3
- Processor Core
- Dodeca-core (12 Core)
- Processor Speed
- 2.50 GHz
- Maximum Turbo Speed
- 3.30 GHz
- Cache
- 30 MB
- QuickPath Interconnect
- 9.60 GT/s
- 64-bit Processing
- Yes
- Hyper-Threading
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C610
- Memory
- Standard Memory
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2133/PC4-17000
- Total Number of Memory Slots
- 24
- Memory Card Reader
- Yes
- Memory Card Supported
- SD
- Controllers
- Controller Type
- 12Gb/s SAS
- Serial Attached SCSI (SAS)
- Serial ATA
- RAID Supported
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 3
- Number of PCI Express x8 Slots
- 2
- Number of PCI Express x16 Slots
- 1
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 3
- Number of USB 3.0 Ports
- 2
- Network (RJ-45)
- Yes
- VGA
- Yes
- Remote Management
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 1200 W
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 2U
