- General Information
- Manufacturer
- The Bosch Group
- Manufacturer Website Address
- http://www.bosch.com
- Brand Name
- Electro-Voice
- Product Type
- Antenna
- Extends system range
- High efficiency with 10 dB of passive gain
- Mounts on standard threaded microphone stand

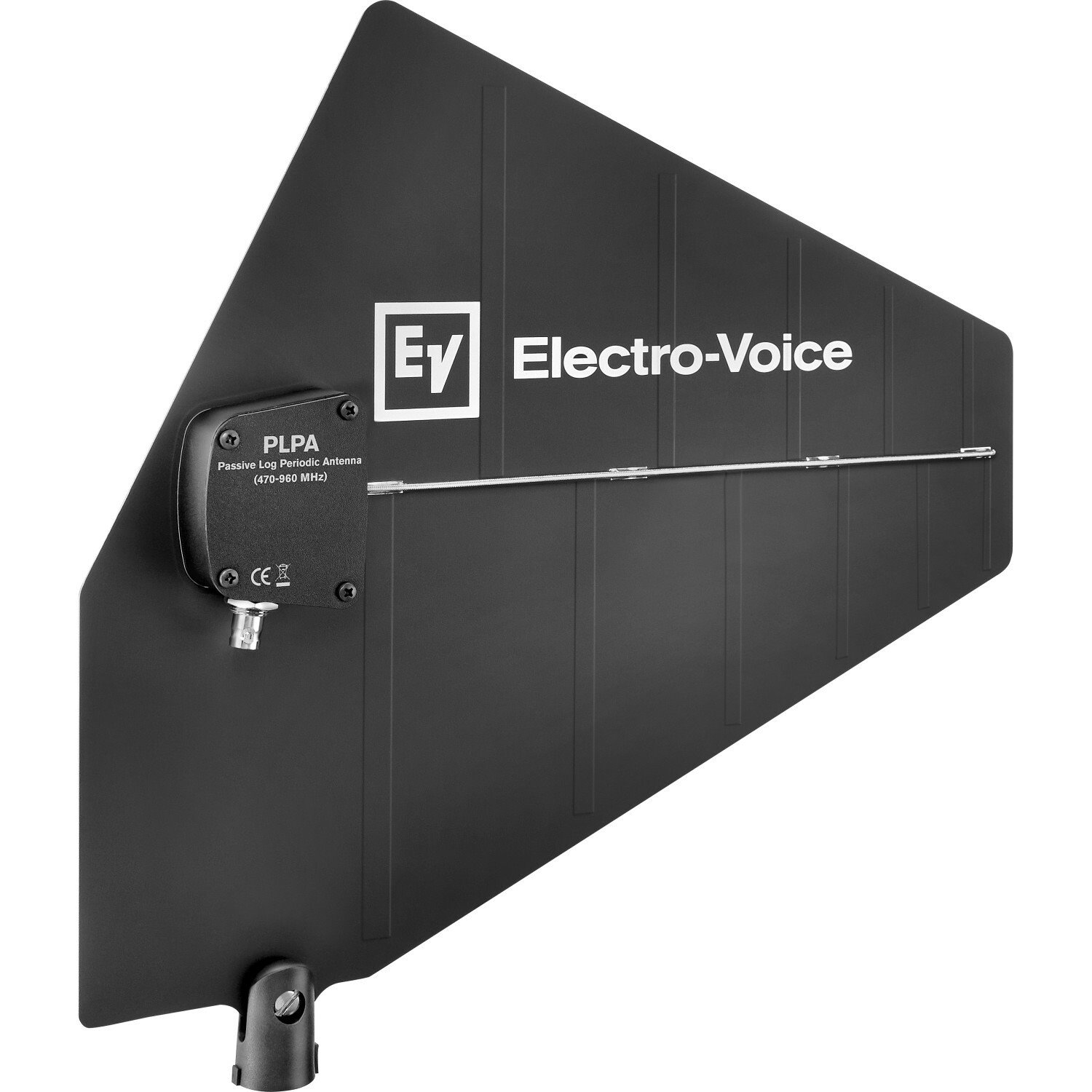

The PLPA is a passive directional antenna, which increases the desired RF signal while rejecting unwanted RF signals. PLPA mounts on a standard threaded microphone stand for easy placement. Intended to extend system range, PLPA should be used in conjunction with high quality, low-loss coax cables such as items from the Electro-Voice CXU grade cables, which are available in various lengths. RF gain at the antenna can be further increased by placing an RE3-ACC-RFAMP RF booster in line using short coax.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Directivity
- Directional
- Frequency Band Type
- UHF
- Operating Frequency Range
- 470 MHz to 960 MHz
- Antenna Gain
- 10 dB
- Interfaces/Ports
- Connector Type
- BNC
- Physical Characteristics
- Product Color
- Black
- Height
- 15"
- Width
- 1.44"
- Depth
- 15"
- Form Factor
- Pole
- Weight (Approximate)
- 13.60 oz
- Miscellaneous
- Country of Origin
- Taiwan
