- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Series
- LSP400
- Product Type
- SFP+

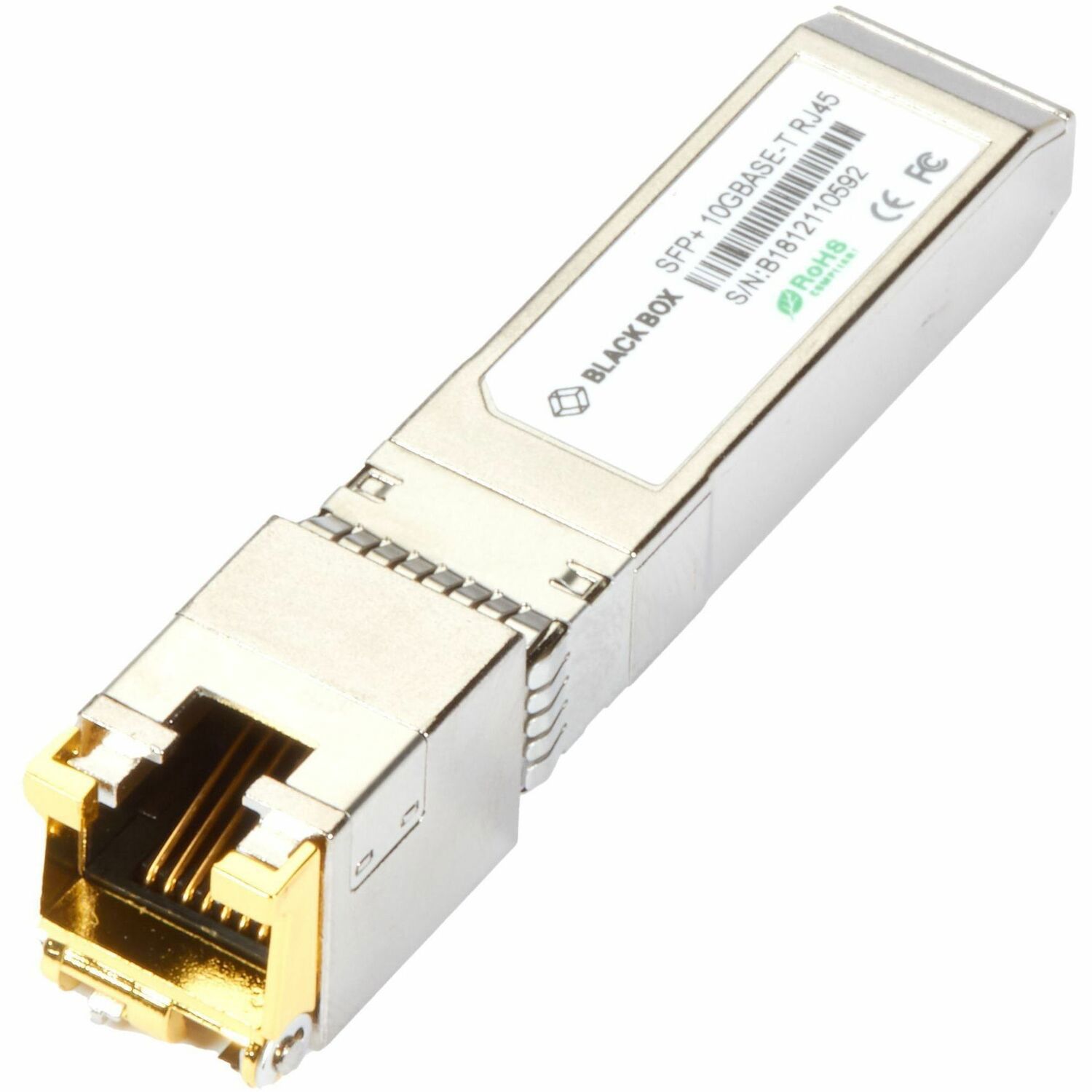

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi-Source Agreement (MSA). They are compatible with the 10G standards as specified in IEEE Std 802.3. SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- RJ-45
- Interfaces/Ports Details
- 1 x RJ-45 10GBase-T Network LAN
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6a
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-T
- Maximum Distance Supported
- 0.03 km
- Maximum Data Transfer Rate
- 10 Gbit/s
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 185°F (85°C)
- Physical Characteristics
- Form Factor
- Hot-pluggable
- Height
- 0.6"
- Width
- 0.6"
- Depth
- 2.7"
- Weight (Approximate)
- 0.04 lb
- Miscellaneous
- Compatibility
MSA Compliant
- Country of Origin
- China
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
