- General Information
- Manufacturer
- Axiom Memory Solutions
- Manufacturer Website Address
- http://www.axiommemory.com
- Brand Name
- Axiom
- Product Type
- 25Gigabit Ethernet Card
Features

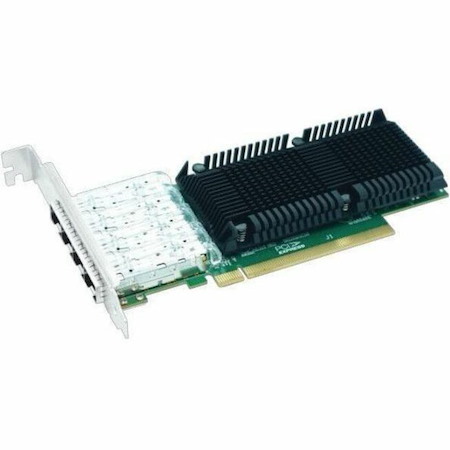

Axiom's 25Gb Fiber Network Adapters are the latest generation of high-performance PCIe 4.0 x16 Lane 25 Gigabit NIC Cards based on Intel chipset. Our 25Gb server adapters meet the demands of next-generation data centers by providing unmatched features for both server and network virtualization and also providing a reliable performance in a flexible LAN and SAN network. Axiom 25Gb server adapters deliver an excellent performance for 25Gb connectivity that is backwards compatible with 10GbE as well as PCIe 3.0 & 2.0, making migration from 10Gb to 25Gb even easier.
Key Features
- Quad-port 10Gb/25Gb Support
- PCI Express (PCIe) v4.0, 16.0 GT/s, x16 lanes
- SFP28 Connectivity
- PXE, iSCSI boot
- Network Virtualization
- IEEE 802.3by and 25GEthernet.org specification compliance
- Data Plane Development Kit (DPDK) support
- Excellent small packet performance for network appliances and Network Functions Virtualization (NFV).
- Low Profile and Full Height brackets are included
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Chipset Manufacturer
- Intel
- Interfaces/Ports
- Host Interface
- PCI Express 4.0 x16
- Total Number of Ports
- 4
- I/O Expansions
- Expansion Slot Type
- SFP28
- Media & Performance
- Media Type Supported
- Optical Fiber
- Maximum Data Transfer Rate
- 25 Gbit/s
- Network & Communication
- Network Technology
- 25GBase-SR
- 25GBase-LR
- 10GBase-SR
- 10GBase-LR
- 1000Base-SX
- 1000Base-LX
- 25GBase-CR
- Physical Characteristics
- Form Factor
- Plug-in Card
- Bracket Height
- Full-height/half-Height
- Height
- 6.7"
- Width
- 0.8"
- Depth
- 4.7"
- Weight (Approximate)
- 12 oz
- Miscellaneous
- Application/Usage
- Network
- Device Supported
- Server
