- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Packaged Quantity
- 1
- Product Type
- KVM Switchbox
The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Number of Computers Supported
- 2
- Number of Local Users Supported
- 1
- Video
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of USB Ports
- 6
- Number of DisplayPorts
- 6
- Power Description
- Input Voltage
- 12 V DC
- Input Voltage Range
- 12V DC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 6.2"
- Depth
- 13.2"
- Weight (Approximate)
- 3.40 lb
- Miscellaneous

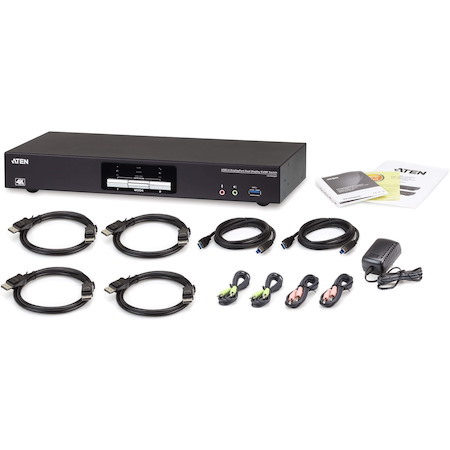

- Package Contents
- 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
- 4 x DisplayPort 1.2 Cables
- 2 x USB 3.0 Cables
- 4 x Audio Cables
- 1 x Power Adapter
- 1 x User Instructions
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- Taiwan
