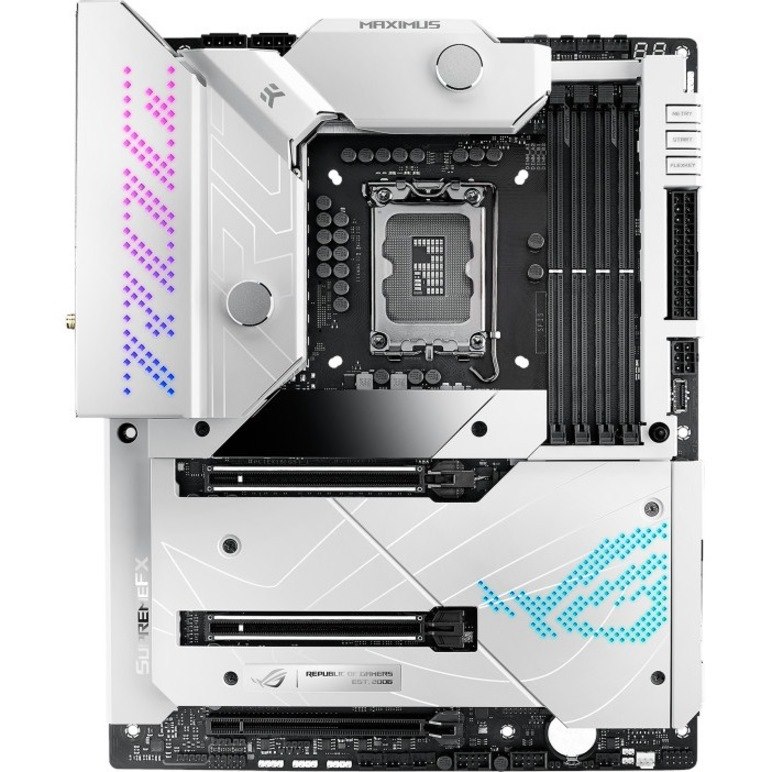

Asus ROG Maximus Z690 Formula Gaming Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

  • Part: 2437674
$895.00

Availability

Out of Stock

Intel® Z690 ATX motherboard with 20+1 power stages, DDR5, Five M.2, USB 3.2 Gen 2x2 front-panel connector, Dual Thunderbolt™ 4, PCIe® 5.0, Onboard WiFi 6E, 10 Gb Ethernet and Aura Sync RGB lighting

  • Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ Processors and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
  • Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation for easy configuration
  • Robust Power Solution: 20+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
  • Optimized Thermal Design: Enlarged VRM heatsinks with EK CrossChill III solution, high-conductivity thermal pads, triple M.2 heatsinks and two M.2 backplates, and ROG Water-Cooling Zone
  • High-Performance Networking: Onboard WiFi 6E, Marvell® AQtion 10 Gb Ethernet, and ASUS LANGaurd
  • Fastest Connectivity: PCIe® 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector and dual Thunderbolt™ 4 USB Type-C® ports
  • Industry-Leading Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for pinpoint positioning and dynamics
  • Unmatched Personalization: 2-inch LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
  • DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, Q-Latch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot, ROG Hyper M.2 card, and ROG graphics card holder
  • Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
  • General Information
    • Manufacturer
    • ASUS Computer International
    • Manufacturer Website Address
    • http://usa.asus.com
    • Brand Name
    • Asus ROG
    • Product Line
    • Maximus Z690 Formula
    • Product Type
    • Gaming Desktop Motherboard

  • Processor & Chipset
    • Chipset Manufacturer
    • Intel
    • Chipset Model
    • Z690
    • Total Processor Supported
    • 1
    • Processor Socket
    • Socket LGA-1700
    • Processor Generation Supported
    • 13th Gen
    • 12th Gen
    • Processor Supported
    • Core
    • Pentium Gold
    • Celeron
    • Core i5
    • Core i7
    • Core i9
  • Memory
    • Number of Memory Slots
    • 4
    • Memory Form Factor
    • DIMM
    • UDIMM
    • Maximum Memory Supported
    • 128 GB
    • Memory Technology
    • DDR5 SDRAM
    • Memory Speed Supported
    • 6400 MHz
    • 6200 MHz
    • 6000 MHz
    • 5800 MHz
    • 5600 MHz
    • 5400 MHz
    • 5200 MHz
    • 5000 MHz
    • 4800 MHz
    • Intel Optane Memory Ready
    • Yes
  • I/O Controller
    • Controller Type
    • Serial ATA/600
    • RAID Supported
    • Yes
    • RAID Levels
      • 5
      0
    • 1
    • 10
  • Video
    • Onboard Video
    • CPU Dependent Video
  • Audio
    • Audio Channels
    • 7.1
  • Network & Communication
    • Bluetooth
    • Yes
    • Bluetooth Standard
    • Bluetooth 5.2
    • Gigabit Ethernet
    • Yes
    • 10Gigabit Ethernet
    • Yes
    • Wireless LAN
    • Yes
    • Wireless LAN Standard
    • IEEE 802.11 a/b/g/n/ac/ax
  • I/O Expansions
    • Total Number of Expansion Slots
    • 3
    • PCI Express Standard
    • PCI Express 5.0
    • PCI Express 4.0
    • Total Number of PCI Express Slots
    • 3
    • Number of PCI Express x16 Slots
    • 3
  • Interfaces/Ports
    • Total Number of USB Ports
    • 10
    • Number of USB 3.2 Gen 2 Type-A Ports
    • 6
    • Number of USB 3.2 Gen 2 Type-C Ports
    • 1
    • S/PDIF
    • Yes
    • HDMI
    • Yes
    • HDMI Version
    • 2.1
    • DisplayPort
    • Yes
    • Number of Network (RJ-45) Ports
    • 1
    • Thunderbolt
    • Yes
    • Number of Thunderbolt 4 Ports
    • 2
  • Onboard Interfaces
    • Number of SATA Interfaces
    • 6
    • Number of M.2 Interfaces
    • 5
    • Total Number of Onboard USB Ports
    • 9
    • Number of Onboard USB 2.0 Ports
    • 4
  • Physical Characteristics
    • Form Factor
    • ATX
    • Width
    • 12"
    • Depth
    • 9.6"
  • Miscellaneous
    • Package Contents
      • Maximus Z690 Formula Gaming Desktop Motherboard
      • 1 x ARGB RGB Extension Cable
      • 1 x RGB extension cable
      • 2 x ROG weave SATA 6G cables
      • 4 x SATA 6Gb/s cables
      • 1 x ROG Hyper M.2 Card
      • 2 x M.2 screw package for ROG Hyper M.2 Card
      • 1 x ASUS Wi-Fi moving antennas
      • 1 x M.2 Rubber Package(s)
      • 1 x Q-connector
      • 1 x M.2 Q-Latch package(s)
      • 2 x M.2 Q-Latch packages for M.2 backplate
      • 1 x ROG key chain
      • 1 x ROG stickers
      • 1 x ROG thank you card
      • 1 x ROG Graphic card holder
      • 1 x USB drive with utilities and drivers
      • 1 x User Guide
