- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus
- Product Series
- PRO
- Product Type
- Desktop Motherboard

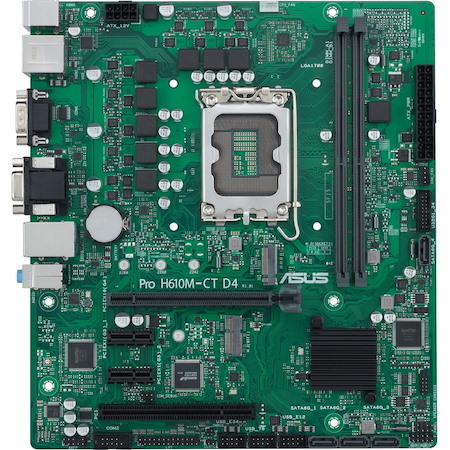

Micro-ATX H610 business motherboard with enhanced security, reliability, manageability and serviceability
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- H610
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 12th Gen
- Processor Supported
- Pentium Gold
- Celeron
- Core i5
- Core i9
- Core i3
- Core i7
- Memory
- Number of Memory Slots
- 2
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 2133 MHz
- 3200 MHz
- 3000 MHz
- 2933 MHz
- 2800 MHz
- 2666 MHz
- 2400 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Total Number of PCI Express Slots
- 4
- Number of PCI Express x1 Slots
- 2
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 2.0 Ports
- 2
- Number of USB 3.2 Gen 2 Type-A Ports
- 2
- VGA
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 8
- Number of Onboard USB 2.0 Ports
- 6
- Number of Onboard USB 3.2 Ports
- 2
- Physical Characteristics
- Form Factor
- Micro ATX
- Width
- 9.6"
- Depth
- 8.7"
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
