- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus
- Product Line
- ExpertCenter
- Product Series
- PN64
- Product Type
- Barebone System

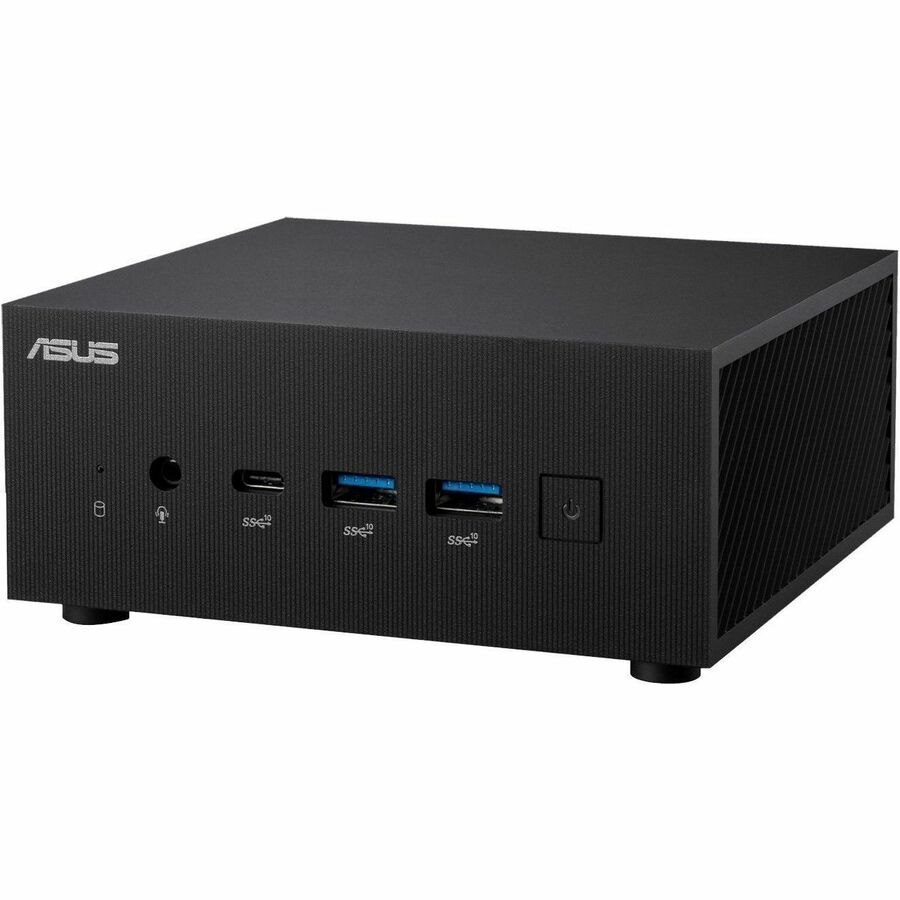

New Processor Architecture Design
ASUS ExpertCenter PN64 is powered by the latest Intel®12th& 13thGen Intel®Core™CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.
Superior Computing Performance
ASUS ExpertCenter PN64 is powered by the latest 13thGeneration Intel®Processors which deliver superior performance for you to save you time and increase your ability to do the things you want. Comparing to previous generation, PN64 has 23% increase on overall system performance, and over 2 times increase for daily multitask computing. With such great improvement, it helps you process intensive business operations more efficiently.
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Installed
- 1
- Processor Type
- Core i7
- Processor Generation
- 13th Gen
- Processor Model
- i7-13700H
- Processor Speed
- 2.40 GHz
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR5 SDRAM
- Memory Standard
- DDR5-4800/PC5-38400
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- PCI Express NVMe 4.0 x4
- Supported Storage Drive Types
- SSD
- HDD
- Controllers
- Controller Type
- Serial ATA/600
- NVMe
- Display & Graphics
- Graphics Controller Model
- Iris Xe Graphics
- Graphics Memory Technology
- DDR5 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- 2.5 Gigabit Ethernet
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ax
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.2
- I/O Expansions
- Number of Total Expansion Bays
- 1
- Number of M.2 Interfaces
- 1
- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 5
- Number of USB 3.2 Gen 2 Ports
- 3
- USB Type-C (Front)
- Yes
- USB Type-C (Rear)
- Yes
- USB Type-C Detail
- 1 x USB 3.2 Gen2 Type-C; 1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD input)
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- DisplayPort
- Yes
- Number of SATA Interfaces
- 1
- Power Description
- Maximum Power Supply Wattage
- 120 W
- Thermal Design Power
- 35 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Eco Black
- Form Factor
- Mini PC
- Height
- 2.3"
- Width
- 4.7"
- Depth
- 5.1"
- Weight (Approximate)
- 1.65 lb
- Miscellaneous
- Package Contents
- ExpertCenter PN64-BB7000X1TDR-NL Barebone System
- Power Adapter
- Power Cord
- Screw Pack
- User Manual
- Warranty Card
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
