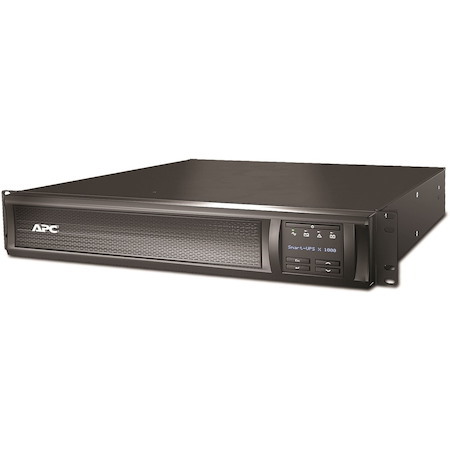

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- SMX
- Product Type
- Line-interactive UPS
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
- Directly Connected Equipment Guarantee
- $150000 Lifetime
- Technical Information
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15P
- Receptacle Detail
- 8 x NEMA 5-15R
- Cord Length
- 8 ft
- Application/Usage
- Server Room
- Security System
- Communication System
- Critical System
- Telecommunication
- Business
- VoIP
- Workstation
- POS Terminal
- Edge Computing
- Data Storage
- Network Storage Device
- Power Description
- Load Capacity (VA)
- 1000 VA
- Load Capacity (Watt)
- 900 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 82 V AC - 144 V AC
- Output Voltage
- 120 V AC
- Input Frequency
- 63 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 693 J
- Management
- Network Management
- SmartConnect
- Alarm
- On Battery
- Low Battery
- Overload
- Controls/Indicators
- Status Indicators
- Control Panel:
- Multi-function LCD Status
- Control Console
- Interfaces/Ports
- Network (RJ-45)
- Yes
- EPO Port
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 1
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 8 Minute
- Backup/Run Time (Half Load)
- 19.70 Minute
- Typical Battery Recharge Time
- 3 Hour
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 17"
- Width
- 3.5"
- Depth
- 19.3"
- Rack Height
- 2U
- Form Factor
- Tower/Rack Convertible
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 50.40 lb
- Miscellaneous
- For Country/Region
- United States
- Certifications & Standards
- ENERGY STAR V2.0 (USA)|cUL Listed
- Software Included
- Ecostruxure IT
- Energy Star
- Yes
- Product Take Back Program
- No
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX1000CNC_ROHS_DECLARATION&p_FileName=SMX1000CNCKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555108619&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555108619&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
- Energy Star URL
- https://www.energystar.gov/products/uninterruptible_power_supplies
- REACH free of SVHC
- No
- Country of Origin
- Philippines
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
