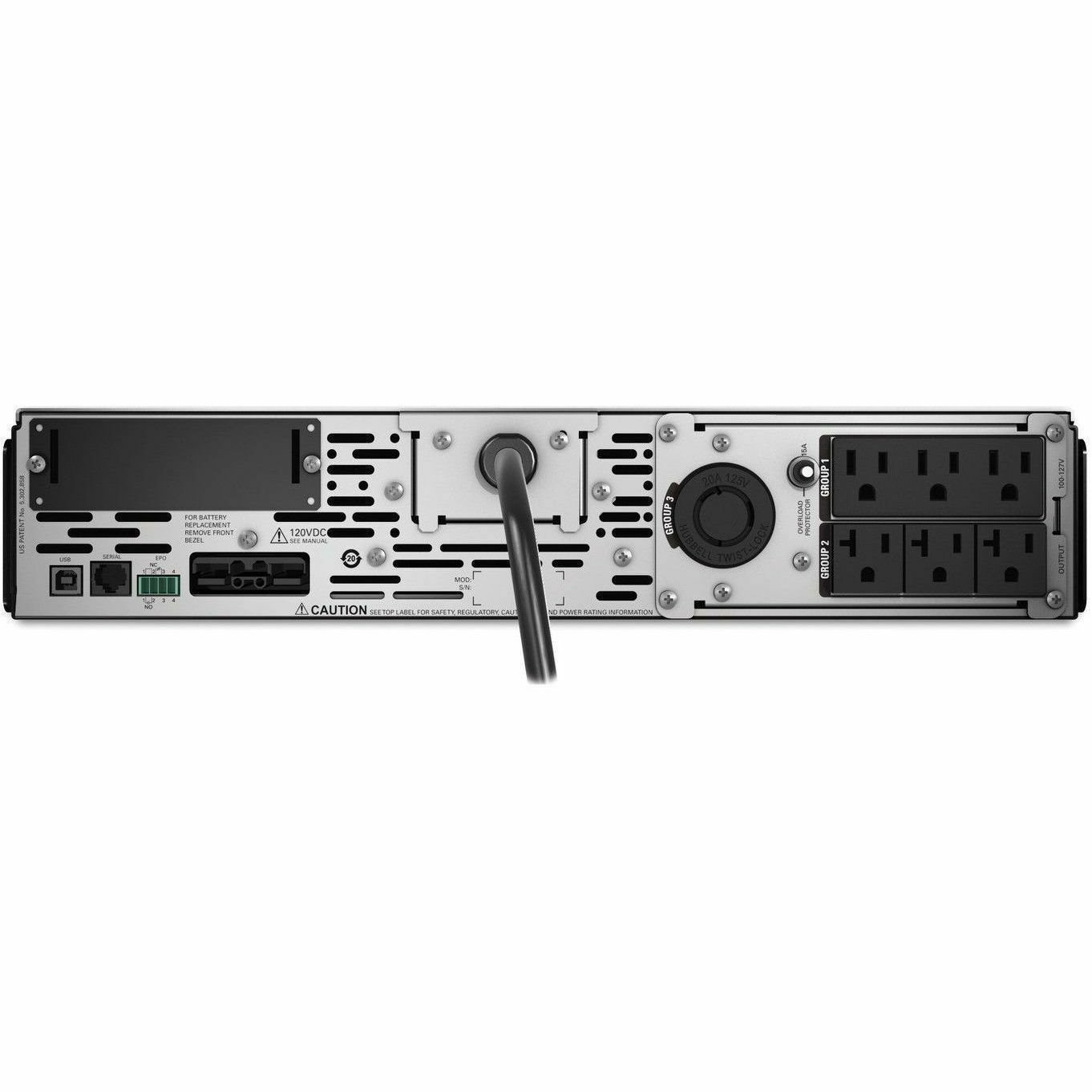

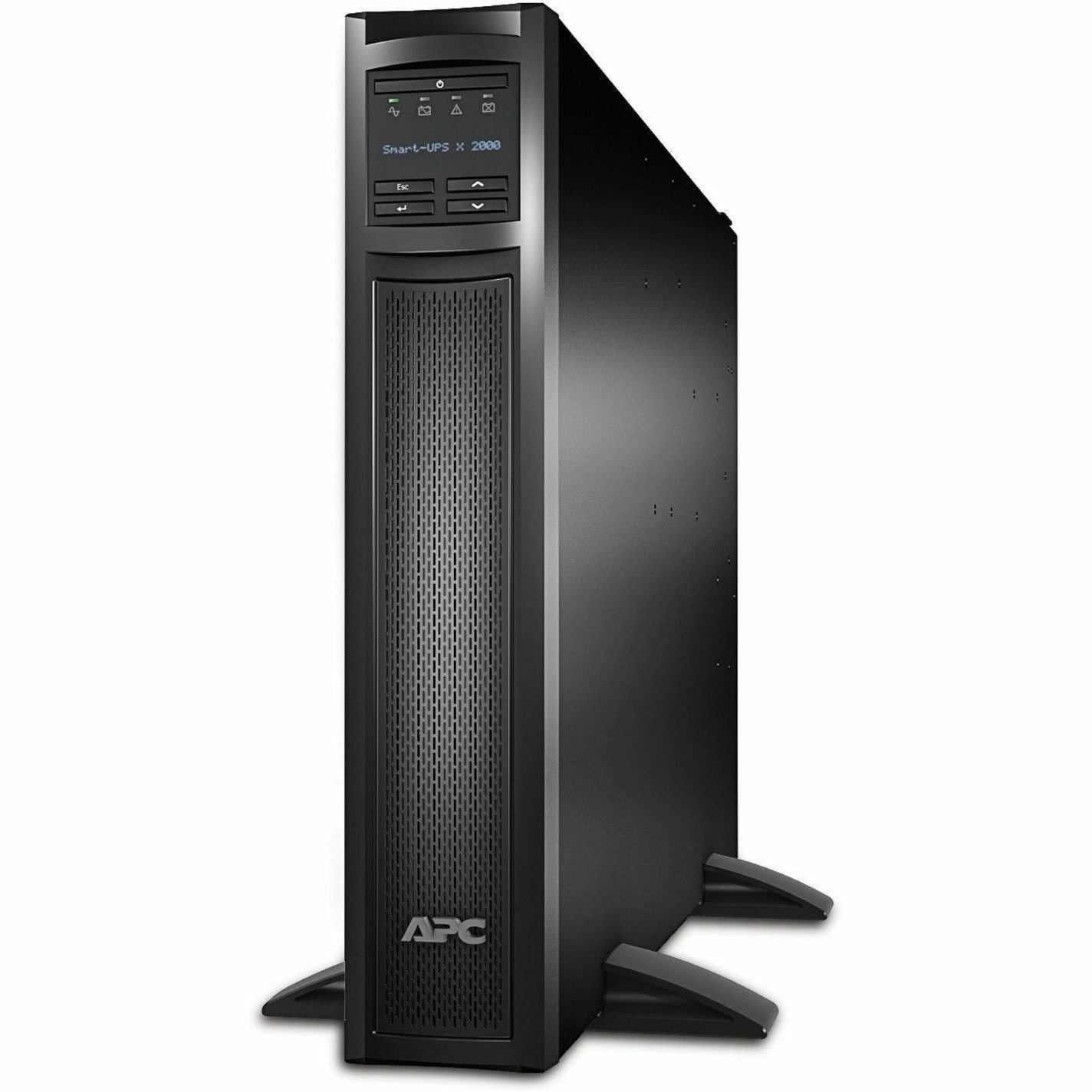

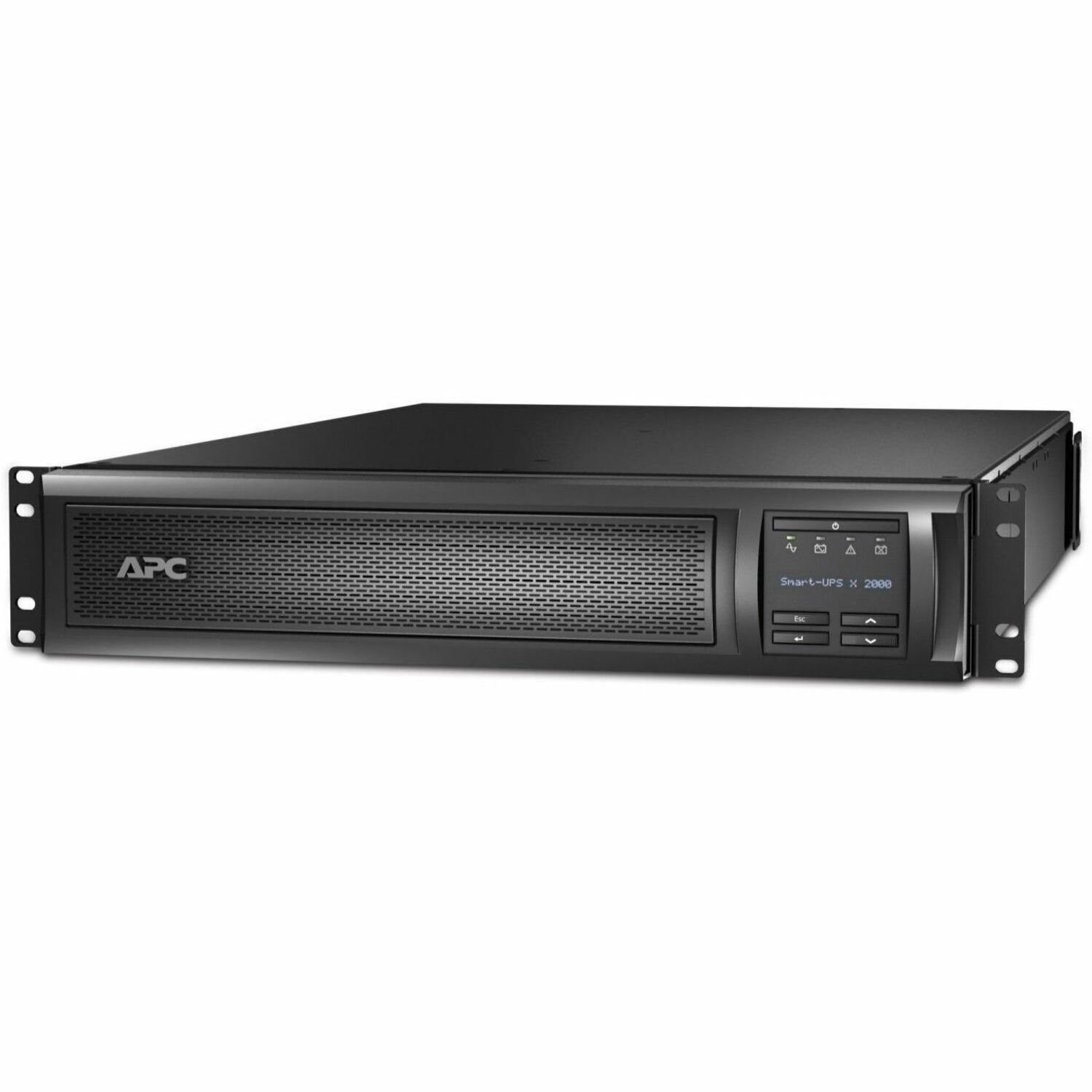

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The Smart-UPS is compliant with the Trade Agreements Act (TAA) requirements. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- SMX
- Product Type
- Line-interactive UPS
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
- Directly Connected Equipment Guarantee
- $150000 Lifetime
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- NEMA 5-20P
- Receptacle Type
- NEMA 5-15R
- NEMA 5-20R
- NEMA L5-20R
- Receptacle Detail
- 3 x NEMA 5-15R
- 3 x NEMA 5-20R
- 1 x NEMA L5-20R
- Cord Length
- 8 ft
- Application/Usage
- Server
- POS
- Router
- Network Router
- Switch
- Hub
- Network Device
- Storage
- Network
- Commercial
- IT
- Business
- Virtual Machine
- Hyperconverged Infrastructure (HCI)
- Surge Suppression
- Yes
- Power Description
- Load Capacity (VA)
- 1920 VA
- Load Capacity (Watt)
- 1800 W
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC
- Waveform Type
- Sine Wave
- Pure Sine Wave
- Surge Energy Rating
- 540 J
- Management
- Network Management
- SmartSlot
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- Battery Characteristics
- Internal Battery
- Battery Chemistry
- Lead Acid
- Typical Battery Recharge Time
- 3 Hour
- Replaceable Battery
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 3.4"
- Width
- 17"
- Depth
- 26.3"
- Rack Height
- 2U
- Form Factor
- Rack/Tower
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 84.77 lb
- Miscellaneous
- Package Contents
- Smart-UPS SMX 1920VA Rack/Tower UPS
- CD with Software
- Rail Kit
- Certifications & Standards
BSMI
- Software Included
- PowerChute
- Country of Origin
- Mexico
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
