- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- Dell EMC
- Product Line
- Smart-UPS
- Product Type
- Double Conversion Online UPS
Keep Working throughout Power Outages

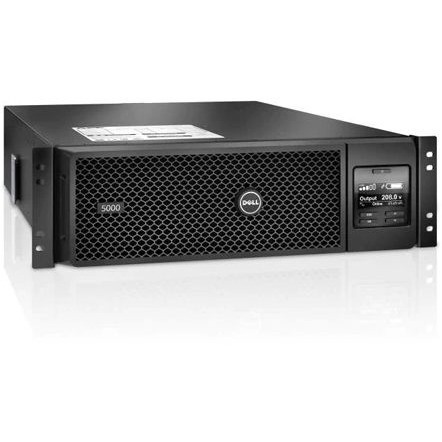

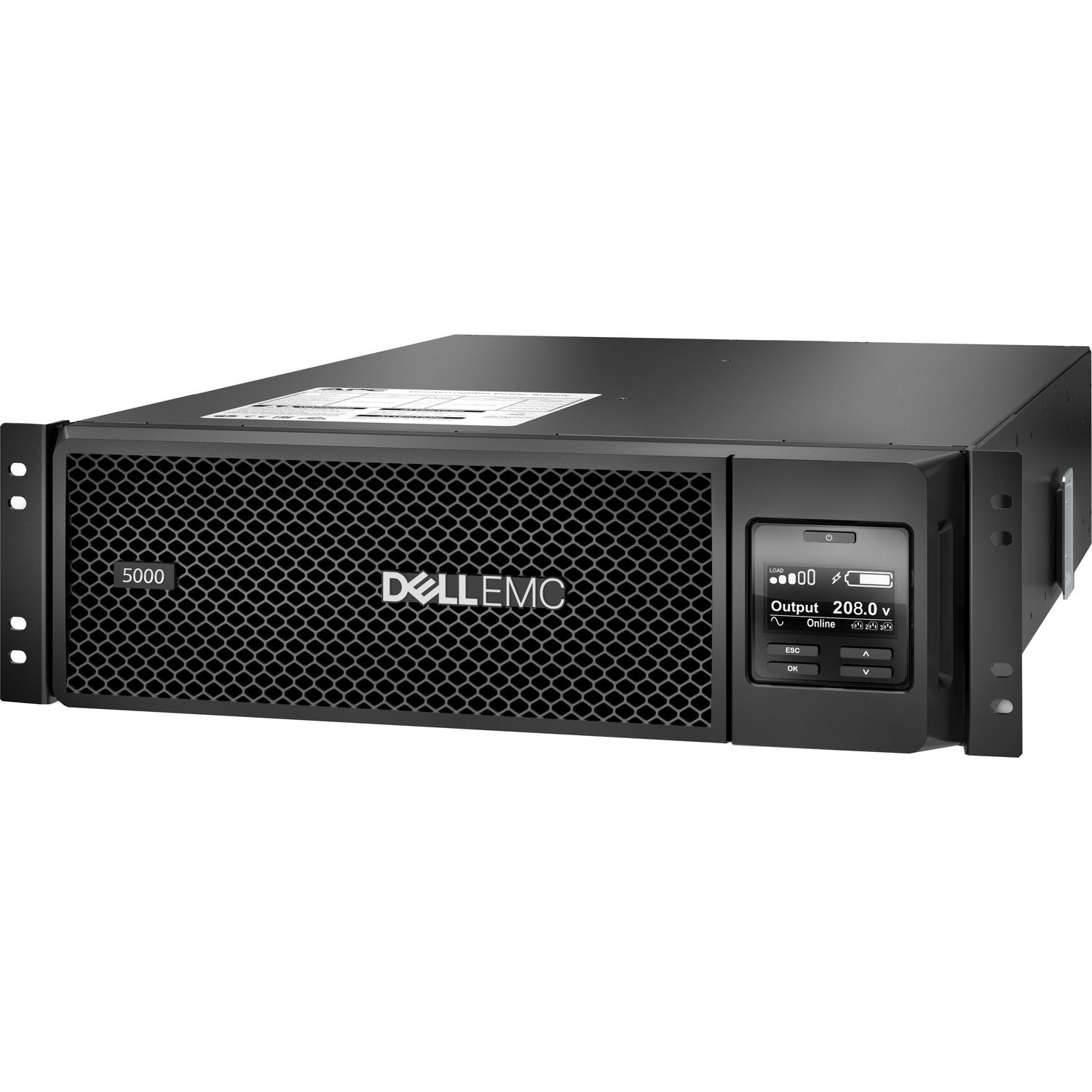

The Dell Smart-UPS Online DLRT5KRMXLT provides instant battery power to your critical electronic devices, keeping you and your business productive even during power outages. It delivers high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. All 4 outlets provide battery backup power and safeguard your expensive electronics from potentially harmful power conditions such as spikes and surges. The accompanying free PowerChute Network Shutdown software will allow you to monitor and manage your IT environment from anywhere on the network. With a 4,250-watt output power capacity, pure sine-wave output, and intelligent battery management maximizing performance, this rackmount/tower Smart-UPS Online is ideal for any small to medium sized business who wants to backup and protect their critical electronics. The Dell Smart-UPS Online DLRT5KRMXLT is compatible with the DLRT192RMBP battery pack.
DLRT5KRMXLT At a Glance:
- Provides instant, clean power to your critical electronic devices during a power outage
- Four battery and surge protected outlets ensure all of your critical electronics will be backed-up and protected

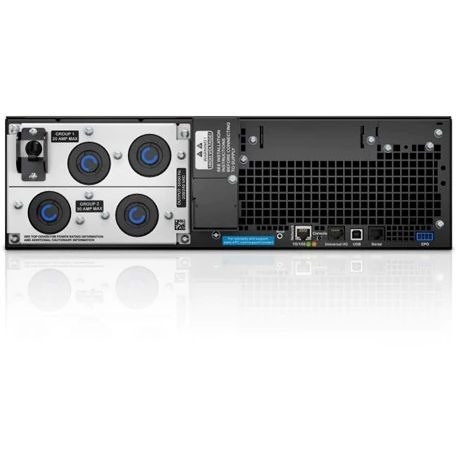

- Two NEMA L6-20R and two NEMA L6-30R outlets make it easier to plug in equipment with different plug types
- Two switched outlet groups allow you to reboot hung equipment, automatically shed less critical equipment, and sequence both the start-up and shutdown of attached equipment
- The pure sine wave output while online or on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
- Green Mode bypasses unused electrical components to achieve high operating efficiency without sacrificing power protection
- Intuitive LCD panel provides Smart-UPS and power status at a glance
- PowerChute Network Shutdown software for Smart-UPS management, safe system shutdown and energy management
- Embedded Network Management Card (NMC) functionally similar to the AP9631 allows you to remotely customize and manage your Dell Smart-UPS
- Vacant SmartSlot for additional accessories
- Includes rails and hardware for easy rackmount or tower installation
- Three-year limited warranty
- $150,000 equipment protection policy
Package Contents:
- Dell Smart-UPS Online DLRT5KRMXLT
- Rackmount support rails and hardware
- PowerChute Network Shutdown software CD
- Documentation CD
- Smart-UPS signaling RS-232 cable
- USB cable
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Plug/Connector Type
- NEMA L6-30P
- Receptacle Type
- NEMA L6-20R
- NEMA L6-30R
- Receptacle Detail
- 2 x NEMA L6-20R
- 2 x NEMA L6-30R
- Number of Battery & Surge Outlets
- 4
- Energy Saving
- GreenPower UPS Bypass Technology
- Application/Usage
- Voice/Data Network
- Server
- Light Industrial Application
- Medical Equipment
- Electronic Device
- Business-critical System
- Power Description
- Load Capacity (VA)
- 5000 VA
- Load Capacity (Watt)
- 4250 W
- Input Voltage
- 230 V AC
- Input Voltage Range
- 160 V AC - - 275 V AC
- Output Voltage
- 208 V AC
- 240 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Management
- Network Management
- SNMP/HTTP Remote Monitoring
- Controls/Indicators
- Status Indicators
Control panel and audible alarms
- High Resolution Graphical LCD display
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- EPO Port
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 1
- Battery Characteristics
- Maintenance-free, Sealed, Leak-proof
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 4.40 Minute
- Backup/Run Time (Half Load)
- 12.60 Minute
- Replaceable Battery
- Yes
- Physical Characteristics
- Height
- 5.1"
- Width
- 17"
- Depth
- 28.3"
- Rack Height
- 3U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 120.15 lb
- Miscellaneous
- Package Contents
- SmartUPS 5000VA 208V - Rack/Tower
- Rackmount Support Rails and Hardware
- Documentation CD
- Smart-UPS Signaling RS-232 Cable
- USB Cable
- Rack Mounting Kit
- Software Included
- APC PowerChute
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
