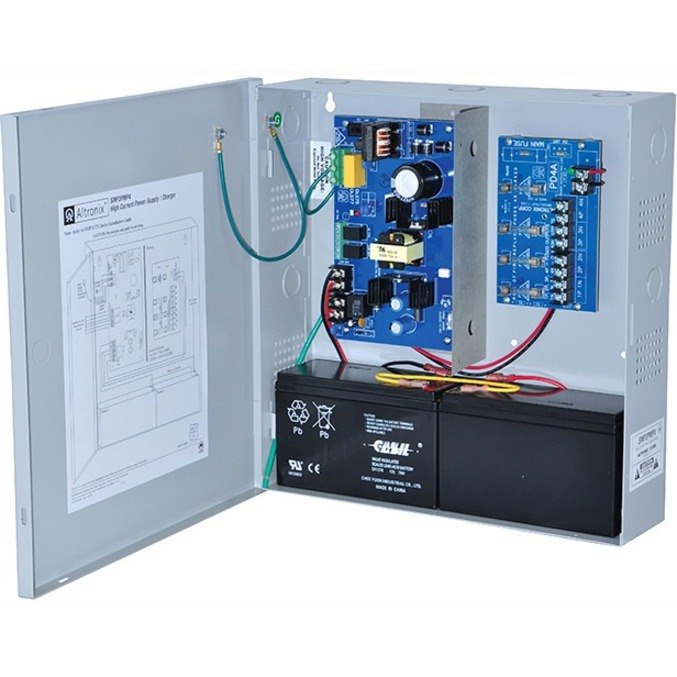

Model SMP3PMP4 power supply/charger converts a 115/230VAC 50/60Hz input, to a 12VDC or 24VDC @ 2.5 amp of continuous supply current distributed via four (4) fuse protected outputs.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Series
- SMP3CTX
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- Fuse
- Short Circuit
- Thermal Overload
- Power Description
- Number of +12V Rails
- 4
- Input Voltage Type
- AC
- Input Voltage
- 110 V AC
- 220 V AC
- Input Voltage Range
- 115 V AC - 230 V AC
- Output Voltage
- 12 V DC
- 24 V DC
- Output Voltage Detail
- 12 V DC @ 2.5 A
- 24 V DC @ 2.5 A
- Input Current
- 350 mA @ 220V
- Output Current
- 2.50 A
- Interfaces/Ports
- Plug/Connector
- On/Off Switch
- Physical Characteristics
- Form Factor
- Wall Mount
- Height
- 13.5"
- Width
- 13"
- Depth
- 3.3"
- Weight (Approximate)
- 9.40 lb
- Miscellaneous
- Country of Origin
- United States
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
